Multi Video Cross-Converter to SDI/HDMI, Audio Embedder
The SDI-MULTI2SDIPRO by KanexPro is a Multi-video to 3G-SDI cross converter and switcher, with Audio Embedder. It was designed to convert multiple input conversions from HDMI, DVI-I, VGA, Component, to 3G/HD/SD-SDI & HDMI. This converter has a very strong up and down video scaler which supports an array of resolutions up to 1080p60/59.94Hz and 1080p/29.97Hz. The compact and rugged design makes this an ideal solution for medical imaging and other broadcast applications involving simultaneous output to high-resolution SDI and HDMI monitors with cross-conversion from analog video devices such as VGA, Component, S-Video and composite. Applications for use include, surveillance systems, rental & staging facilities, post-production, TV studio, digital cinema, or other A/V applications.
For shaper reproduction of image quality and video enhancements the SDI-SDI2MULTIPRO utilizes built-in anti-aliasing which allows for a greater realism to a digital image by smoothing rough edges on curved lines and diagonals. Along side the built-in anti-aliasing, is a 3D interlace that assists in converting to progressive scanned images when used with broadcast based SDI systems by filling in the missing lines to a full 60 frames per second.
Rounding out the SDI-SDI2MULTIPRO multi-caster is the technology to use Region of Interest (ROI). This is ideal for intelligence gathering or surveillance/reconnaissance where there is a need to detect potential targets or regions of interest in digital imagery. Using KanexPro's free software the converter allows for selecting a specific area from a video or image displayed on a screen. Simply drag the ROI horizontally or vertically or increase/decrease the size of a certain area to create special attention on that specific image. These ROIs can then be used to routinely call for further sensing or other action, to control intelligent image-compression algorithms, or to direct further analysis for target identification and recognition.
Comes backed by a 3 year warranty from KanexPro.
Manufacturers Note: RG59 cable is required for SDI transmission; a 75-ohm high quality coaxial cable is recommended.
- Convert Digital / Analog video to SDI & HDMI
- Resolutions: up to 1080p,1920 x 1080i@50,59.94,60Hz
- Powerful up/ down converter scaler

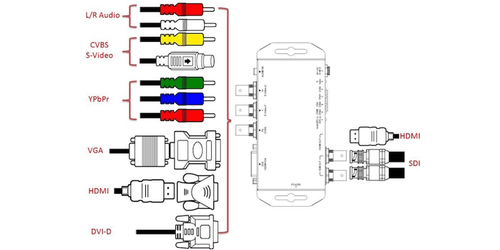

- Video Input: DVI (HDMI can be used with DVI-HDMI adapter)/ 3 x SDI BNC for component, s-video and c-video/ 3.5mm for analog stereo audio
- Video Output: 2 SDI BNC, HDMI
- Added DIP switch settings for various video resolutions
- Simultaneous output to 2 x SDI & 1x HDMI
- Audio embedder supports output up to 8Ch/24Bit@48KHz
- Output Video Signal: SD/HD/3G SDI/ or thru Digital HDMI
- Built-in test pattern generator, anti aliasing & 3D De-interlace
- Allows region of interest (ROI): for annotation & quantitative information
- Package Includes: 3G-SDI Cross-converter, DC power supply, and operation manual
- Locking power supply & mounting ears
- Warranty: 3 Years
