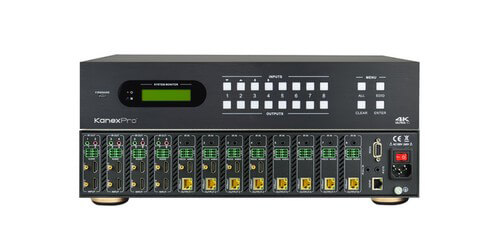

8 HDMI Inputs x 8 HDBaseT Out 4K Matrix Switcher

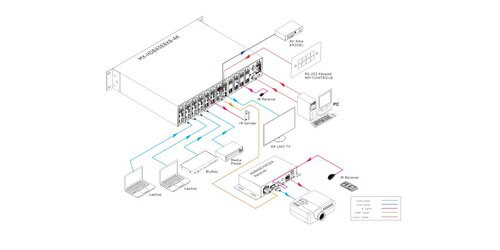

The Kanex MX-HDBASE8X8-4K is an 8x8 matrix switcher with 8 HDMI inputs and 8 HDBaseT outputs. Input your HDMI connections and then send the signals out up to 230' away over just a single Ethernet cable. The matrix supports PoE and powers compatible receivers such as the HDBASE70POER, this eliminates the need of the receiver needing to be by a power outlet. The matrix supports resolutions up to 4K for your UHD content, whether it is now or in the future. For proficient audio capabilities it includes 8 auxiliary audio inputs for stereo, and 8 stereo outputs for HDMI audio de-embedding as well as 8 IR inputs. The matrix switcher also features an Ethernet port for controlling via a web based GUI, the GUI is super easy to use which eases your install and set up time.
The matrix can be controlled in numerous ways besides the integrated web GUI including the front control buttons, and bi-directional RS-232 and IR. Integrated EDID and HDCP management make your set up and changes incredibly easy. Also included are 4 HDMI mirrored outputs designed for routing 4K/UHD application, your selected source is delivered to HDMI output 1 through 4, (for HDMI input 1 - 4) and HDBaseT outputs 1 through 8.
The matrix switches fast with instant display and includes rack ears for easy installation, as well as an IR remote. The Kanex MX-HDBASE8X8-4K is a professional grade matrix switcher that is a perfect fit for medium to large venues that need long distance runs and 4K capabilities.
- Inputs: 8 HDMI
- Outputs: 8 HDBaseT, 4 mirrored HDMI
- Distance: Up to 230' 1080P@60Hz, 26' 4Kx2K@30Hz via HDMI
- HDCP 1.4
- Control: Front control buttons, and bi-directional RS-232 and IR
- Resolution: Up to 4K
- RGB/YCbCr 4:4:4, YCbCr: 4:2:2, 4K/30Hz
- Deep color support up to 16 bit
- Sends PoE
- Bandwidth: 10.2Gbps
- Dimensions: 17.2" x 3.4" x 15"
- Weight: 11.9lbs
- Warranty: 3 years
- Includes: Rack ears, RS-232 cable, IR remote, IR receiver, 24 terminal blocks
- Warranty: 3 years
