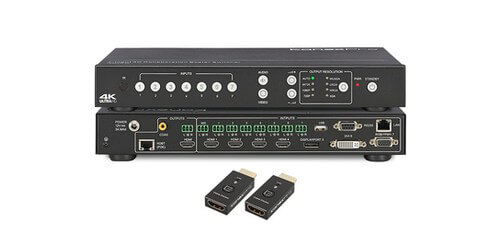

KanexPro HDSC71D-4K

7x2 4K Multi-input Presentation Scaler Switcher

Satisfaction Guaranteed!
Part #: HDSC71D-4K
Your Price: $1,999.95
Quantity:
0 out of 5 based on 0 ratings.

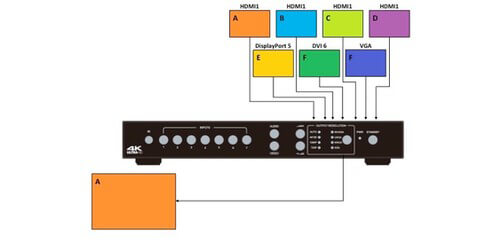

Featuring the HDSC71D-4K 7x2 4K Multi-input Presentation Scaler Switcher from KanexPro. This device allows the user to connect up to seven (4x HDMI, 1x DisplayPort, 1x DVI-I, 1x RGB/YPbPr) inputs and display them on two separate (1x HDMI & 1x HDBaseT) outputs. It is engineered to support 4K inputs and outputs for presentation and collaboration systems, while also supporting high quality 3840x2160@30Hz resolutions. This switcher has built-in EDID management, is HDCP compliant, and also supports control by way of RS-232, front-panel push buttons, or even via web based interface.

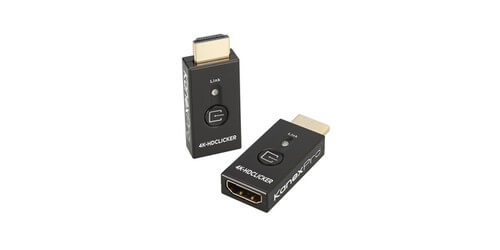

This switcher/scaler comes with two HDMI 4K-HDCLICKER Cable Controllers that are designed to fast-switch and connect HDMI source devices. The cable controllers amplify collaboration and help accelerate innovation while displaying the content one at a time directly from DisplayPort and HDMI devices, and laptops. This system works seamlessly with any video conferencing system (Cisco, Avaya, Polycom, etc.). The KanexPro HDSC71D-4K Scaler Switcher is an ideal solution in settings like conference rooms, huddle rooms, classrooms and any other collaborative space where the user needs both digital and analog sources to be scaled and switched reliably quick.

Additional Features of this Scaler Switcher Include:

  • Elite 4K scaling engine to support up-scaling & down-scaling
  • Independent Audio Switching
  • Supports auto-scaling by auto-detecting EDID from display to scale optimized resolution
  • DisplayPort input resolution up to 3840x2160@60Hz
  • Supports MHL inputs via HDMI
  • Provides break away audio
  • Supports auto-selection of active HDMI audio (high priority) or external stereo audio
  • Integrates with table or wall cable connection boxes in conference applications
  • Unbalanced stereo analog & digital coax audio output
  • Video Input: 4 x HDMI, 1 x DisplayPort, 1x DVI-I, 1 x RGB/YPbPr
  • Video Output: 1x HDMI, 1x HDBase-T
  • Resolutions: 3840x2160@30Hz(4K x 2K @30Hz)
  • RS-232: 1 x DB-9
  • Audio Input: 7 x 3.5mm mini-stereo
  • Audio Output: 1 x Optical
  • IP Control (LAN)
  • USB (Reserve) firmware update
  • AC Power: 1 x 110~240V AC 3-pin
  • Power Input: 110~240V AC
  • Power Consumption: 15W (max.)
  • Screen layout Select Buttons: 4 x Tact-type
  • Video Select Buttons: 4 x Tact-type
  • Inputs Select Buttons: 7 x Tact-type
  • Audio Select Button: 1 x Tact-type
  • Output Resolution Select Button: 1 x Tact-type
  • On / Standby Button: 1 x Tact-type
  • Output Resolution Indicators: 8 x LED, green
  • Power Indicator: 1 x LED, red
  • Weight: 3.3 lbs.

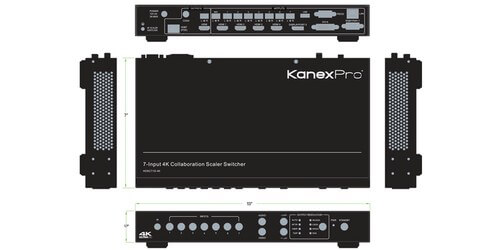

  • Dimensions (WxHxD): 12.6" x 1.7" x 7.3"
  • Included Items: 2x 4K-HDCLICKER, Mounting Hardware
  • Warranty: 3 years
