Home > Presentation Switcher Scalers -> 7x2 -> KanexPro -> HDBT-VTSC72-4K 7x2 HDBaseT 4K Video Tiler/Scaler Switch, Cable Controller

KanexPro HDBT-VTSC72-4K

7x2 HDBaseT 4K Video Tiler/Scaler Switch, Cable Controller

Satisfaction Guaranteed!
Part #: HDBT-VTSC72-4K
Your Price: $3,999.95
Quantity:
0 out of 5 based on 0 ratings.

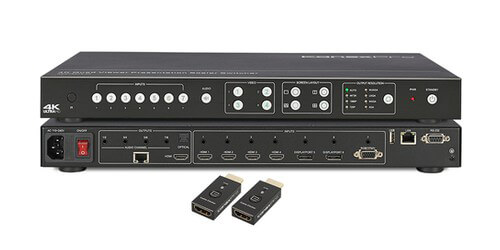

Introducing the HDBT-VTSC72-4K 7x2 HDBaseT 4K Video Tiler and Scaler Switcher from KanexPro with Cable Controllers. This device is designed to provide seven inputs (4 HDMI, 2 DisplayPort, and 1 VGA) to two mirrored HDMI and HDBaseT outputs up to 230' with PoC. It is engineered to upscale DisplayPort/HDMI and VGA devices like desktops, laptops, and Blu-ray players to a 4K resolution, creating a Quad Window experience in any setting. It's compliant with HDCP and can be controlled by way of front panel control buttons, RS-232, IR remote, or TCP/IP.

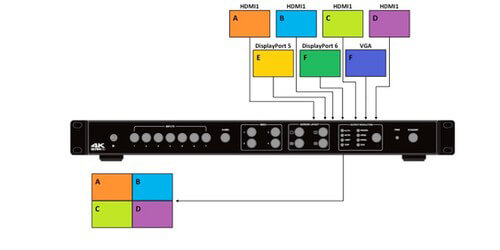

This unit supports Quad-View Windowing from four of the inputs as well as supporting MHL inputs by way of HDMI. With this device the user can independently select the source to transmit to any display. Additionally, the Elite 4K scaling engine provides support for up-scaling and down-scaling. The HDBT-VTSC72-4K Switcher Scaler from KanexPro is an ideal solution for settings such as meeting rooms, classrooms, collaboration, and video conferencing applications. This device comes backed from KanexPro with a three year warranty.

Additional Features of this Scaler Switch Include:

  • Integrates with table or wall cable connection boxes in conference applications
  • Easily integrates with Video conferencing systems such as Polycom, Cisco, and Avaya
  • Support auto-scaling by auto-detecting EDID from display to scale optimized resolution
  • Support auto-selection of active HDMI audio (high priority) or external stereo audio
  • Provisions unbalanced 7.1 analog audio or optical digital audio output
  • Audio embedding & De-embedding
  • Provides Break away audio switch
  • 1U rack mountable enclosure
  • Video Input: 4x HDMI, 2x DisplayPort, 1x VGA
  • Video Output: 1x HDMI, 1x HDBaseT Class A (Optional)
  • Resolutions: Up to 4K
  • Supported Color Depth: 8-bit / 10-bit / 12-bit
  • Format Compliance: HDMI v1.4, DVI v1.0, DisplayPort v1.2, HDCP v1.4, HDBaseT Class A (Optional)
  • Audio Input Formats: HDMI and DisplayPort: embedded digital audio
  • TOSLINK: Digital Optical Audio
  • Audio Bandwidth: 20 Hz to 20 kHz
  • Audio Sampling Rate: 48 kHz, 8CH, LPCM
  • Analog Audio Output: 7.1 Surround sound (analog) audio on 4x 3.5mm PC audio female connectors
  • Display Settings: Output Resolution, Window Layout, Video Input Position, Aspect Ratio, VGA Auto Adjust
  • Window Layout (optional): Preset up to 16 different layouts under quad viewer Advanced EDID Management utilities
  • Front Panel: 18x Backlit Buttons
  • IR Remote Control with 19x buttons for control
  • RS-232: Serial communication, 9-pin D-sub connector
  • Ethernet: Web-based GUI or Telnet
  • Mounting Options: 1U full width AC Power Input: 100~240VAC / 50-60Hz
  • Power Consumption: 15 Watts (max.)
  • Power Over HDBaseT (POH) Optional HDBaseT Output functions as a PSE Type 1 device (13 watts)
  • Weight: 7.3 lbs.

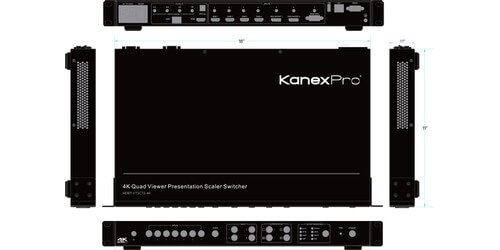

  • Dimensions (HxWxD): w/o Feet or Rack Ears: 1.7 x 17.3 x 11.0", w/Feet: (H) 2.0", w/Rack Ears: (W) 19.0"
  • Included Accessories: 1x External AC Power Cord, 1x IR Remote Control Unit, 1x User Guide, 2x Rack Mount Ears
  • Warranty: 3 years
