Home > Format Converters -> HDMI Audio De-Embedder -> KanexPro -> HAECOAX3 18Gbps, 4K60 HDMI 2.0 Audio Extractor, De-Embedder, Dolby Atmos


18Gbps, 4K60 HDMI 2.0 Audio Extractor, De-Embedder, Dolby Atmos

Satisfaction Guaranteed!
Part #: HAECOAX3
Your Price: $119.95
0 out of 5 based on 0 ratings.

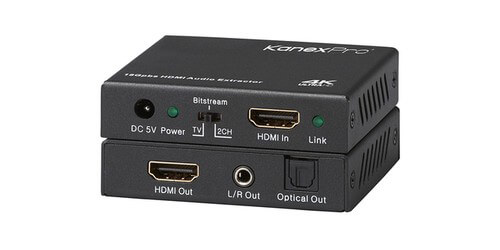

The HAECOAX3 from KanexPro is their latest 3rd generation super high-quality audio extractor with HDMI de-embedding, that has been designed with lightening fast 18Gbps bandwidth speeds which support HDMI 2.0. This audio extractor will de-embed HDMI audio streams from any HDMI based device to digital or analog stereo while maintaining 4K/60 video resolutions with YUV 4:4:4 color space and pass-thru for HDR 10 (High Dynamic Range). It will support audio formats such as LCPM 2-channel stereo, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master audio with audio sampling rate up to 192kHz. In addition the HAECOAX3 will support automatic input cable equalization, as well as the ability to select your bit-stream audio by switching instantly. Making this device a great addition to be used by audio enthusiasts for de-embedding high-fidelity audio signals up to 192kHz and analog 2-channle stereo audio in residential and audio based home theaters. Furthermore it is perfect for de-embedding audio from devices such as Apple TV 4th generation, Google Chromecast, Xbox One, PS4, Sonos Speaker systems where you can simply extract audio from HDMI and drive it through 2-channel stereo or AV receiver.

  • Input: HDMI Type A v2.0
  • Outputs: HDMI Type A v2.0, Optical TOSLINK digital S/PDIF audio, 3.5 mm stereo analog audio
  • Supported Resolutions: Up to 4K60
  • Video Bandwidth: 18Gbps
  • HDCP compliance: HDCP 2.2 & HDCP 1.4
  • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
  • Color Depth: 10-bit, 12-bit
  • Supports HDR 10(High Dynamic Range) pass-through for wide color gamut
  • HDMI Audio Formats pass-thru: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  • Optical Audio Formats: LPCM 2CH,LPCM 5.1,Dolby Digital 2/5.1CH, DTS2/5.1CH
  • L/R Audio Formats: Analog Stereo 2CH
  • EDID Switch: Selects 2.0CH, 5.1 CH, TV EDID to source
  • CEC- pass through
  • Power Supply: Input: AC100 - 240V 50/60Hz, Output: DC 5V/1A
  • Power Consumption (Max): less than 1 Watt
  • Dimensions (WxDxH): 2.8" x 2.38" x 0.66"
  • Weight: 0.28lbs
  • Included Accessories: 5V/1A Power Adaptor, User Manual
  • Warranty: 3 Years
