KanexPro EXT-HDRPT100M

HDBaseT Repeater w/ 1x2 HDMI Splitter, 4K60 4:2:0 - HDCP 2.2

Satisfaction Guaranteed!
Part #: EXT-HDRPT100M
Your Price: $799.95
Quantity:
0 out of 5 based on 0 ratings.

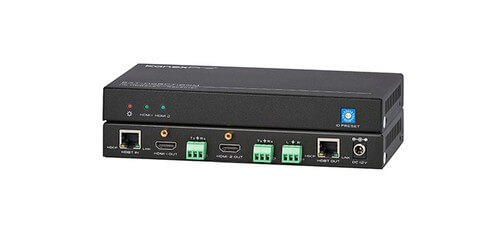

The EXT-HDRPT100M from KanexPro is a HDBaseT 4K signal repeater with a 1x2 HDMI Splitter. This extender repeater features one HDBaseT input and one HDBaseT output to create a daisy-chainable path to several displays with each repeater supporting 4K60 4:2:0 resolutions up to 330'. There are also two HDMI output ports and two RS-232 ports dedicated for each output for control of displays. Using RS-232, commands such as power on/off can be sent to compatible displays and projectors. Additionally when RS-232 is under control from the display each repeater in the daisy chain can be individually addressed for sending specific commands at the particular nod. This makes this repeater and ideal solution for use in applications for extending and controlling uncompressed, 4K displays at airports, banks, restaurants, or retail, where the content can be looped in & out to multiple display signage connected from a single HDMI source on the sender side.

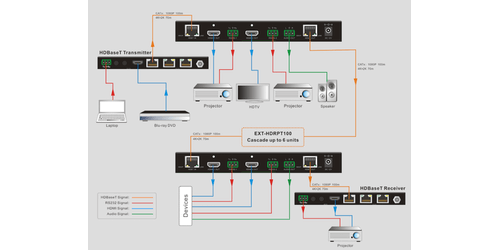

The EXT-HDRPT100M has been professionally designed for digital signage type applications, allowing users to extend HDMI signals to two or more displays using a single HDMI device such as a media player or PC. Furthermore this unit will let users loop out to another HDBaseT repeater to daisy chain more displays. It will also support built-in audio de-embedding using phoenix connectors to 2-channel stereo or an amp. This device is HDCP 2.2 compliant and can handle 4K60 video resolutions with a 4:2:0 chroma sampling rate up to 10-bit for better HDR support and color depths. The repeater has the ability for Daisy chaining and will allow up to 8 repeater to be used in a chain, thus created a sixteen display signage connected from a single HDMI source on the sender side.

Please note:

This repeater requires a transmitter (Tx) part # HDBASE70POET for 230' or any HDBaseT transmitter for 330' to connect an HDMI source device, which can be remotely extended up to 330' over CATx cable to the repeater. It also works with our SP-HDBT1X4 Splitter for distributing to four HDBaseT outputs.

  • Input: HDBaseT
  • Outputs: HDBaseT, 2 x HDMI, 2 x RS-232, 1 x Phoenix connector stereo audio
  • Resolutions: Up to 4K60Hz at 4:2:0
  • Computer Resolutions: WUXGA (1920 x 1200)
  • Transmissions Distance: 330' or 230' with HDBaseT Lite
  • HDCP 2.2 Compliant on HDBaseT In
  • HDCP 1.4 Compliant on HDBaseT / HDMI out
  • Embedded Audio Signal: Supports PCM/Dolby/DTS
  • Output Analog Audio Signal: Supports PCM
  • Analog Audio Frequency Response : 20 Hz to 20 kHz, +-3 dB
  • RS232 Mode 1: Broadcast: Send same data on Tx port for all RS232 port of HDBT repeaters & HDBT receiver
  • RS232 Mode 2: Point to point: we send command to specified port of each HDBT repeaters via specified command with ID number
  • Baud Rate: 9600
  • Built-in 1x2 HDMI distribution amplifier for 2-displays (mirrored)
  • Bi-directional control over RS-232
  • Front-panel & ethernet LED's provides real-time I/O connection status
  • Universal RS-232 code compatible with any 3rd party control systems
  • Power Supply Input: 100VAC~240VAC, 50/60Hz / Output: 12VDC, 2A
  • Maximum Power Consumption: 14W

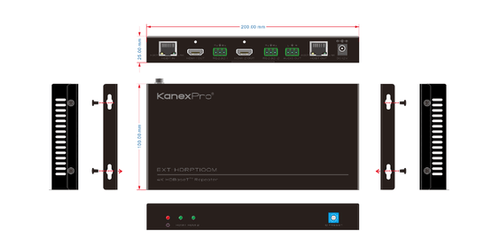

  • Included Accessories: 2 x Mounting brackets & 4 x Screws, 3 x 3-Pin phoenix connector, 1 x Power adapter (12VDC, 2A), 4 x Plastic cushions
  • Warranty: 3 Years
