Home > Amplifiers -> Mixer-Amplifiers -> KanexPro -> AP3DBL 3-input Audio Amplifier with Mic Mixer - 40 Watt Amplifier Output

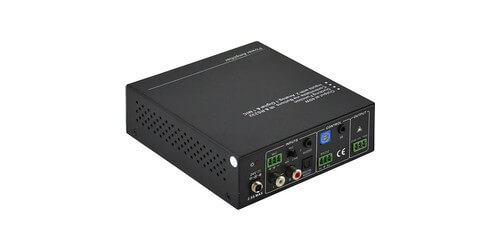

KanexPro AP3DBL

3-input Audio Amplifier with Mic Mixer - 40 Watt Amplifier Output

Satisfaction Guaranteed!
Part #: AP3DBL
Your Price: $399.95
Quantity:
0 out of 5 based on 0 ratings.

The KanexPro AP3DBL is a 3-Input 40-Watt audio amplifier supporting 70V or 100V. It comprises of 3 switchable inputs (RCA, 3.5mm and TOSLINK) for quick switching and sound reproduction with one 3-level MIC input with mixer function. The audio amplifier supports MIC mixing and EQ control making this a perfect solution for classrooms, conference rooms, lecture halls and restaurants. Control of the device is achieved via front panel, RS-232 and IR control, with control for volume with base & treble. The built-in Microphone mixer is separately controllable, and the input supports 48V phantom power. Comes in a convection cooled, anti-static case design, the features LED indicators for power and operating status, as well as an internal universal power adapter.

  • Audio Input: 2 x stereo audio (RCA), 1 digital audio (TOSLINK), 1 MIC
  • Audio Output: 1 x Mono amplifier
  • Output Power Type: 40W, 70V or 100V
  • Input Impedance for Inputs 1&2: >10K Ohms
  • Output Impedance: 50 Ohm/stereo, 4-8 Ohm/Amplifier
  • Frequency Response: Input: 120Hz - 20KHz / Output: CMRR >70dB@20Hz-20KHz
  • Signal to Noise Ratio: 80dB at maximum output
  • Bandwidth: 120Hz - 20KHz
  • Stereo Channel Separation: Input: >75dB@20Hz to 20KHz / Output: THD + Noise 1%(1KHz), 0.3%(20KHz) at nominal level
  • Voltage Gain: 32dB
  • Min Input Impedance: 48V: 35 Kilo Ohms
  • Mic: 10 Kilo Ohms
  • Line: 75 Kilo Ohms Mic Audio Detection Delay: < 1ms
  • Common Mode Rejection Ratio: >70dB (20Hz- 20KHz)
  • Control: RS-232, 9-pin female D connector, IR remote sensor
  • Pin Configurations: 2 = TX, 3 = RX, 5 = GND
  • TCP/IP control through TCPRS2
  • Power consumption: 3.6 Watts
  • Power supply: 24V DC
  • Dimensions: 1.5" x 3.78" x 3.45" (HWD)
  • Weight: 0.67 lbs
  • Warranty: 3 Years parts & labor
