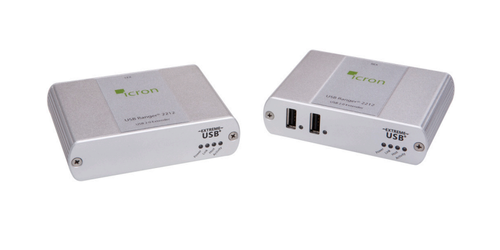

Icron 2212
USB 2.0 Ranger Dual Port Cat5e Range Extender Kit w/ PoE - 330'
- All Icron Items on extended backorder until May 2023
- Range: 330' over Cat 5e (or better) cable
- LEX Input: 1 x USB Type B
- LEX Output: 1 x RJ45
-Lynn Y.
Description

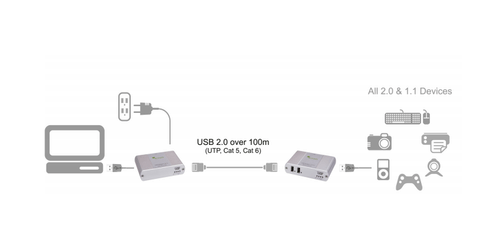

Featuring the Icron USB 2.0 Ranger 2212 Dual Port Cat5e Ranger Extender Kit with PoE. This two port, high speed extension solution, utilizes USB 2.0 connections at up to 480 Mbps over 330' of Cat5e cabling. It delivers standard 500mA USB power over the Cat5e extension link to the two port remote hub. Using PoE technology eliminates the need to locate the remote USB devices near an AC power outlet and greatly increases the ease of deployment and installation for this extension kit. Designed in a rugged metal enclosure the Icron 2212 is FCC Class B rated, requires no software drivers, and will work with all major operating systems to include Windows, Mac OS X, and Linux. Making it a perfect extension system for use in industrial, medical, digital signage and commercial Pro Audio Video applications. Comes backed by a 2 year warranty.
Specifications
- REX Input: 1 x RJ45
- REX Output: 2 x USB Type A Operates with USB 1.1 and USB 2.0 hosts
- Supports all USB devices up to 480Mbps
- OS Compatibility: Windows, Mac OS X, Linux
- Maximum USB devices supported: 14 USB devices or 3 USB hubs with 11 USB devices
- Power adapter Maximum Rating: 24V DC @ 1A (LEX only)
- Current available to USB at REX: 2 x 500mA
- LEX and REX unit dimensions: 3.94" x 2.99" x 1.02"
- Regulatory testing: FCC (Class B), IC (Class B), CE (Class B)
- ESD Rating: EMC EN-61000-4-2:2001 4kV Contact, 8kV Air
- Included Items: Local Extender, Remote Extender, 6' USB Cable, Quick Start Guide, Power Adapter
- Warranty: 2 Years
