Hall Research VSA-X21

4K HDMI Audio Extractor, Audio Amplifier, HDBT, RS-232, IP Control

Satisfaction Guaranteed!
Part #: VSA-X21
Regular Price: $895.00
Instant Savings: -$44.75
Quantity: $850.25
Quantity Pricing
1-4
$850.25
5-9
$816.24
10+
$782.23
0 out of 5 based on 0 ratings.

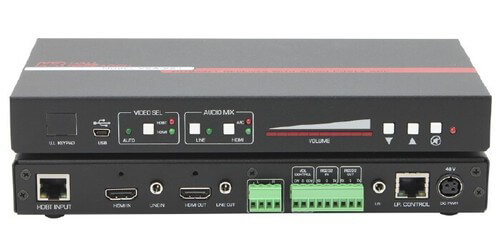

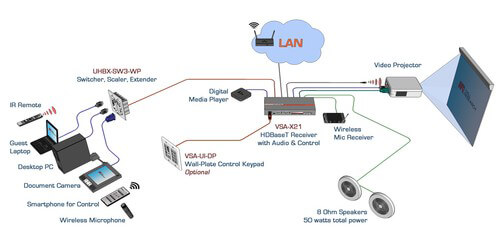

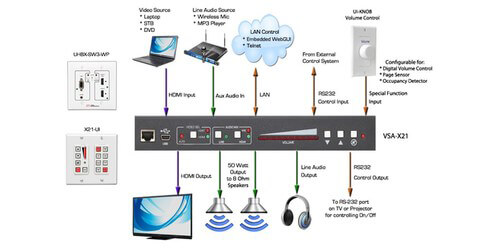

The VSA-X21 4K HDMI Audio Extractor with Audio Amplifier from Hall Research. This device has been designed to directly drive 8-ohm speakers and is compatible with any HDBaseT compliant transmitter such a the Hall Research UHBX-S-WP transmitter (not included). The VSA-X21 will provide power to transmitters through the use of PoH (Power over HDBaseT) which eliminates the need to connect the power to the transmitter. Additionally it offers a "long-reach" mode that allows it to utilize Cat6 cabling up to lengths of 492'. For mixing audio from microphones or other sources, a separate audio input is included. When connected to a network, control is possible via LAN either using Telnet, or using the internal WebGUI. The flexible WebGUI lets users create, name and assign functions to virtual buttons. A keypad port has also been provided for connecting an X21-UI (not included) remote control wall plate when physical control of the room with a real keypad is required. Other advanced features for this unit include priority page mute, docking, auto input priority, L/R to mono mixer, and ARC audio support.

  • Video Resolutions: DVI signal VGA (640x480) thru WUXGA (1920x1200) / HDTV up to 4K@30 Hz
  • Video Standards: DVI (single link)
  • Supports HDMI, DVI, HDCP, 3D and Deep color
  • HDMI 1.4 video specifications including 12 bit color depth, 3D video, and 4K@30
  • HDCP 1.1
  • Video Signal Type: TMDS
  • Video Connectors: Locking HDMI Input, Locking HDMI Output, HDBT PoH Input
  • Audio Formats: HDMI Embedded Audio including: LPCM (32-192kHz sample rate)
  • Built-in 50 watt audio amp for direct connection to 8 Ohm speakers (25 watts/channel)
  • DDC: Pass-Thru DDC for reading EDID directly from remotely connected LCD and HDCP handshake
  • CEC: Pass-Thru
  • Control: Via front panel, RS-232, digital pot (rotary encoder)
  • USB: (1) Mini-B

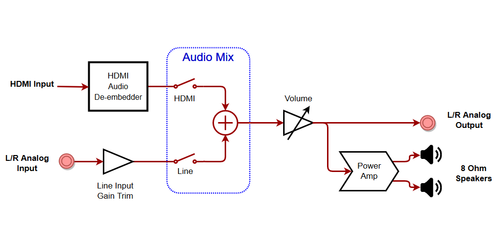

  • HDMI Ducking (when Line input is detected, HDMI sound volume in the mix is automatically lowered)
  • Primary RS-232 port for device control
  • Secondary RS -232 port for auxiliary device control
  • Store separate commands for the auxiliary devices
  • Power Supply: 100 VAC to 240 VAC, 47-63 Hz, External: 48 VDC, 1.5A
  • Cooling: Convection
  • Enclosure type: Metal (Steel)
  • Safety: CE
  • EMI/EMC: CE, FCC Class A
  • MTBF: 90,000 hours (Calculated Estimate)
  • Weight: 1.5 lbs
  • Warranty: 3 Years
