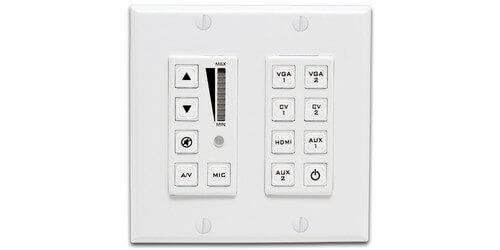

Hall Research VSA-UI-DP
User Interface Decora Panel for VSA System - Keypad Wallplate
Featuring the Hall Research VSA-UI-DP User Interface Decora Panel for VSA System, Keypad Wallplate. This unit is a user interface keypad for the VSA system that includes separate source and mic volume controls. As well as an LED bar indicator with eight programmable buttons that can be configured to perform any individual or combination of system actions. Customized labeling is provided via the pre-printed label sheet and the removable clear caps.

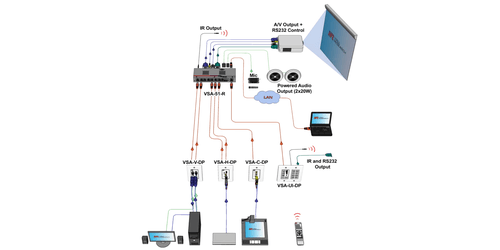

For control, this keypad includes a built-in IR receiver for routing through a 2-wire output on the back panel as well as relaying IR to the VSA system receiver (sold separately). For controlling auxiliary devices, it also features an RS-232 port. It can be expanded to have an additional 8 buttons with the VSA-UI-8 User Interface Expansion module (not included). This device connects to VSA system receiver (sold separately) by way of a single UTP cable. No complicated in-wall wiring is necessary since power is provided from the receiver.
- Input: IR Receiver
- Output: 1x RJ-45 (to receiver),1x RS-232, 1x IR, 1x expansion header (for VSA-UI-8)
- Form Factor: Dual-gang Decora
- Distance: Up to 300'
- Control: RS-232, IR
- Volume Level Indicator
- Warranty: 3 years
