Hall Research UHBX-WPC-P2

4K HDBaseT/IR/RS-232/PoH Wall Plate Tx/Rx, 500'

Satisfaction Guaranteed!
Part #: UHBX-WPC-P2
Regular Price: $800.00
Instant Savings: -$40.00
Quantity: $760.00
Quantity Pricing
1-4
$760.00
5-9
$729.60
10+
$699.20
0 out of 5 based on 0 ratings.

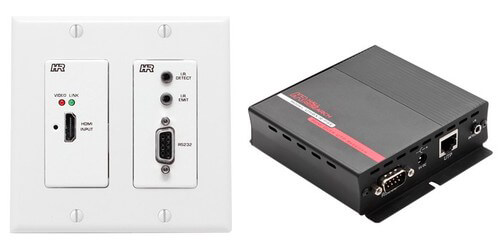

The Hall Research UHBX-WPC-P2 is a double decora wall plate with an HDMI connection that also has an integrated HDBaseT transmitter.  You can send your HDMI, IR, RS-232, and power over a single Cat5e/6 cabling up to 500' with 1080P and 330' with 4K using the included Hall Research UHBX-R-PSE receiver, it will also send power to the wall plate so it doesn't require a power supply.  The wall plate passes EDID, CEC, 3D, and is HDCP compliant.

IR and RS-232 is sent in both directions, the RS-232 can operate at any baud rate including 115,200 at all times and the IR extension is fully compatible with all standards.

The Hall Research UHBX-WPC-P2 is an affordable HDBaseT wall plate for sending your HDMI, IR, RS-232, and power reliable over long distances with a included receiver that will send power to the wall plate.

  • HDBaseT HDMI Decora wall plate transmitter and receiver
  • Sends: Video with embedded audio, RS-232, IR, and PoH
  • Distance: Up to 500' for 1080P and 330' for 4K
  • Resolution: Up to 4K Supported
  • Receives power from included receiver
  • Size: Single gang
  • Compliant with HDMI 1.4 video specifications including 12 bit color depth, 3D video
  • Includes mud ring so you don't need an electrical box
  • Locking HDMI input connector
  • Audio Formats: All HDMI Embedded Audio including: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio (32-192kHz sample rate)
  • Made in the USA
  • Warranty: 3 years
