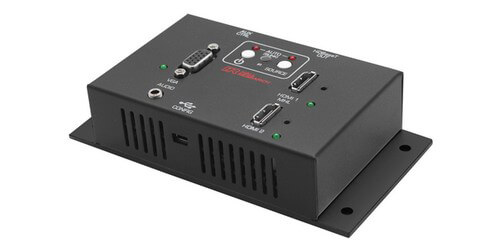

Hall Research UHBX-SW3-S
2 HDMI, 1 VGA, 1 Audio, 4K Auto Switcher w/ HDBaseT Out

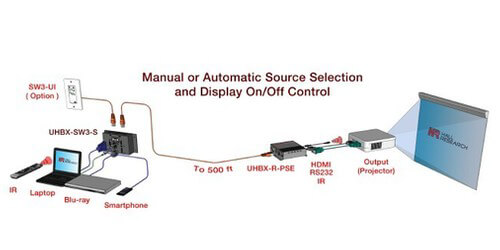

The Hall Research UHBX-SW3-S is a multi-format auto switching 4K HDBaseT out under table switcher that features 2 HDMI, 1 VGA, and 1 audio input. It then outputs all these over a single Cat6 cable over HDBaseT to a compatible receiver. The signal can be sent up to 330' for 4K resolutions and up to 500' for 1080P resolutions using the optionally purchased UHBX-R-PSE receiver, the receiver sends the power so the switcher does not require any power. Another special feature on the switcher is it has RS-232, CEC, and IR capabilities allowing you to power on and off your TV with a power button on the switcher, or you can also set it to automatic mode where the RS-232 commands are sent to power on the TV when a signal is detected. The TV will power off automatically when the signal is lost after your desired set delay.
When the VGA is detected it will automatically scale to 1080P or whatever resolution you choose, the audio is embedded over the Cat6 cable as well. The HDMI input number 1 supports MHL with phone charging which allows users to present from their phone with just a cable.
There is a USB port that allows full easy to use drag and drop programming of the UHBX-S, take full control of all the capabilities quickly and easily making set up a breeze. This switcher is ideal for conference rooms, classrooms, or anywhere you need high quality presentation.
Connect to the optionally purchased SW3-UI or SW3-UI-VOL wall plates for remote control of your switcher, the SW3-UI-VOL adds volume up and down as well as muting. Now you can control your switcher from up to 200' away in the room by simply connecting a Cat5 cable to the aux input on the back of the wall plate.
Use the 4 screw holes on the switcher to mount to the underside of your table for easy installation.
- Inputs: 2 HDMI, 1 VGA, 1 Audio
- Output: HDBaseT
- Distance: 500 ft (150m) at 1080p, or 330 ft (100m) at 4K resolution
- Sends: RS-232, CEC, power, and IR
- HDCP complaint
- Manual or automatic input selection
- Compatible receiver powers switcher
- Supports all HDMI resolutions including 4K
- Scaling: HDMI and VGA can be scaled to your choice of resolutions
- HDMI input #1 features MHL with phone charging
- Warranty: 3 years
