Hall Research HHD264-S-PD

HDMI over LAN Transmitter w/ PoE RS-232 Bi-Directional Control

Satisfaction Guaranteed!
Part #: HHD264-S-PD
Regular Price: $395.00
Instant Savings: -$19.75
Quantity: $375.25
Quantity Pricing
1-4
$375.25
5-9
$360.24
10+
$345.23
0 out of 5 based on 0 ratings.

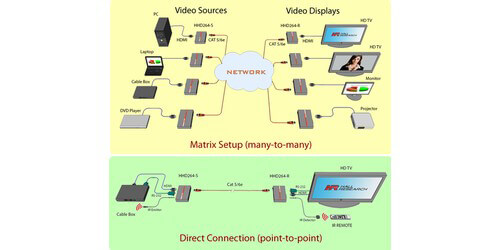

The HHD264-S-PD from Hall Research is a high quality HDMI over IP Transmitter with Power over Ethernet. Part of the HHD264 series of economical HDMI over LAN (IP) senders and receivers which provide unrivaled power and simplicity to distribute one or more HDMI sources to multiple displays on any LAN. This system can connect up to 64 independent senders simultaneously connected through the network and up to 256 receivers can be accommodated. A Gigabit (1000 BaseT) network infrastructure is recommended  to allow for up to 64 video streams to be transported, the system will work with 100 BaseT networks when using less sources. The latest H.264 encoding scheme with user definable bit rate will transmit Full-HD 1080p@60 video resolutions.

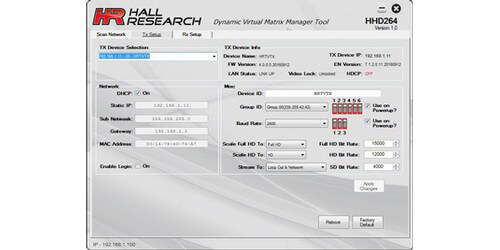

The HHD264-S-PD will extend bi-directional RS-232 data as well as HDMI video and audio. Using a multi-cast group dip switch video routing from the senders and receivers can be pre-assigned, equally the system can also behave as a Dynamic Virtual Matrix Switch. If using a fixed signal from the senders to receivers, the user can just set the dip switches to route senders to any one group of receivers. Users can also on the fly switch the displayed source shown on any receiver, through the receivers IP address and accessing the WebGUI.

  • Input Resolution: VGA or 480p to Full HD 1080P@60Hz
  • Inputs: 1 HDMI
  • Outputs: 1 RJ-45, 1 HDMI, 1 IR
  • RS-232 Port: 1 DB9 Female
  • PoE (Powered over Ethernet):There is also a connector for optional power connection if direct PoE is unavailable (power supply must be purchased separately)
  • Audio: HDMI Stereo 2-channel
  • Switcher/Router: Gigbit | GMP and DHCP support
  • Send up to 64 different HDMI sources on your LAN
  • Add unlimited number of Receivers on the network
  • Dynamically assign the source displayed at each Receiver
  • Visually lossless H.264 compression for a crisp 1080p 60Hz video
  • User denable Compression Ratio to use minimum bandwidth
  • Extends bidirectional RS-232 for control
  • Power Consumption: Max 3W

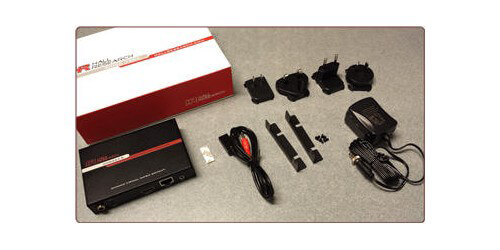

  • Package Contents: 1 HHD264-S-PD, IR Emitter Cable with Senders, Set of mounting bracket hardware, User's Manual
  • Warranty: 3 Years
