HDBaseT Kit, 4K, IR, RS-232, Ethernet, HDCP 2.2 - 495'

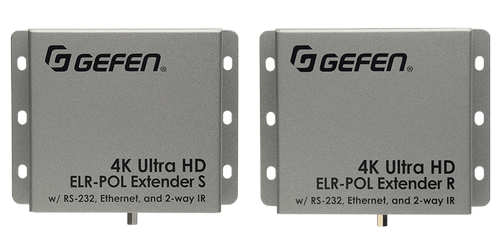

The Gefen EXT-UHD-CAT5-ELRPOL is a sender and receiver HDBaseT extender kit that sends your 1080P, 2K, or 4K signal with embedded audio over a Cat5 cable. Besides sending video it can also send RS-232 control, IR, Ethernet, and power over a single Cat5 cable up to 495'. 1 power supply is included and can be used on either the transmitter or receiver to power the other unit sending power over the Cat5 cable, this makes installation easy not having to find an outlet.
The Gefen EXT-UHD-CAT5-ELRPOL supports HDCP 2.2 and 1.4, HDMI 2.0, multi-channel HD audio, and 3D, CEC, and lip sync pass through. This model supports all protocols of HDBaseT with all the features possible, send everything you need now and in the future with the Gefen EXT-UHD-CAT5-ELRPOL.
- Technology: HDBaseT
- Sends: Video, HD audio, RS-232, IR, Ethernet, power
- Resolution: Up to 4K at 60 Hz 4:2:0
- Audio: LPCM 7.1 audio, Dolby TrueHD, and DTS-HD Master Audio pass-through
- 12-bit deep color
- Distance: Up to 495' using shielded Cat5e/6
- Supports: HDCP 2.2 and 1.4, HDMI 2.0, multi-channel HD audio, and 3DTV, CEC, and lip sync pass through
- Dimensions (sender/receiver): 8.3" x 1.7" x 6.7"
- Includes: (1) Sender Unit, (1) Receiver Unit, (1) 6 ft. Locking HDMI Cable, (1) 3-pin Phoenix-to-DB-9 cable adapter (M-M), (1) 3-pin Phoneix-to-DB-9 cable adapter (M-F), (1) IR Emitter (EXT-IREMIT), (1) IR Extender, (1) 24V DC Power Supply
- Warranty: 2 years
