4x2 Presentation Switcher and 1080P Scaler

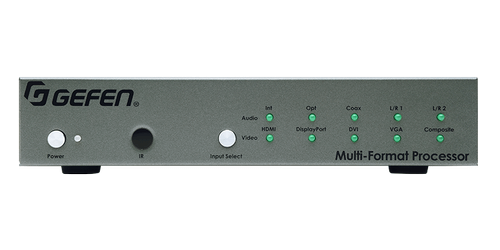

The Gefen EXT-MFP is a multi-format presentation switcher with integrated 1080P scaling. The switcher features the following inputs: 1 HDMI, 1 DisplayPort, 1 DVI, and 1 VGA, for outputs it has 1 HDMI and 1 DVI. The built-in scaler will scale all outputs to 1080P so you always have a correct signal with no extra devices. You can control the unit via the front panel push buttons, the included remote control, web server, IP, or RS-232, the LED lights on the front of the unit show you exactly what inputs and outputs have been selected. Up to 2 digital audio and 2 analog sources can be connecting, each audio source can be independently assigned to any video source covering your audio needs.
The EXT-MFP features EDID management, assignable input naming, and is HDCP compliant making this an ideal choice for any conference room.

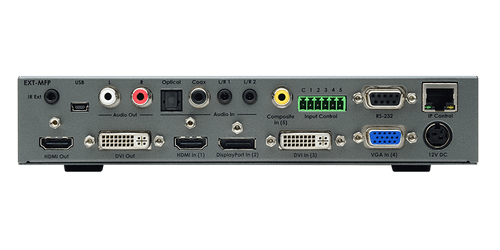

- Inputs: 1 HDMI, 1 DisplayPort, 1 DVI, and 1 VGA
- Outputs: 1 HDMI and 1 DVI
- Audio inputs: Two 3.5mm, 1 Toslink, 1 S/PDIF
- Integrated 1080P scaler
- Control: Front panel push buttons, the included remote control, web server, IP, or RS-232
- LED status lights
- Locking power supply
- HDCP compliant
- Dimensions: 8.4" x 1.6" x 8.5"
- Weight: 3.2lbs
- Warranty: 2 years
- Includes: Power supply and IR remote control
