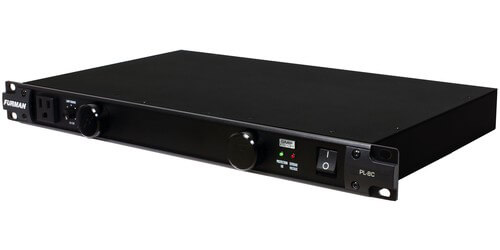

15A Advanced Power Conditioner: Lights, 9 Outlets, 1RU, 10' Cord

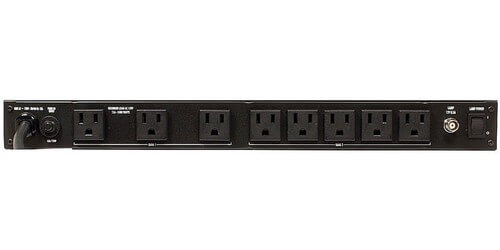

Featuring the PL-8C 15A Advanced Power Conditioner from Furman with lights, 9 Outlets, 1RU size, and a 10 foot cord. This unit brings together outstanding performance and superior protection in a simple rack-mountable, yet sturdy design. Out of the eight rear outlets, three come widely spaced to accommodate for bulky AC power transformers. This power conditioner also comes with one front panel outlet for the convenience of the user(s). It also features a rear panel BNC connector on the rear panel which allows the user to attach any standard (12V 0.5 Amp) goose-neck lamp to illuminate the rear of their rack.
This device comes with some of Furman's exclusive technologies such as LiFT (Linear Filtering Technology), SMP (Series Multi-Stage Protection), and EVS (Extreme Voltage Shutdown). The filtration technology (LiFT) suppresses linear AC noise evenly across a very wide bandwidth. Resulting in a lower noise floor for the user’s audio system, better picture on video displays, and protection from the possibility of data corruption or loss. It dramatically reduces differential AC noise while feeding the users devices clean, filtered AC power.
SMP offers protection to connected equipment from daily exposure to, even the highest level, of spikes and surges. It absorbs the surges without deterioration of the circuit or contamination to the ground line. It also maximizes the longevity of connected equipment, provides peak performance, and minimizes the risk of downtime or failure. The automatic EVS protects both the device and its connected equipment from the extreme voltage spikes. It is constantly monitoring incoming voltage and automatically turns off the unit and all connected equipment when it is fed 137 volts or higher.

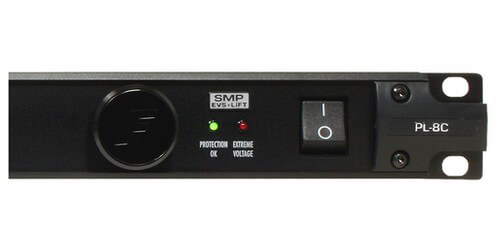

This power conditioner is manufactured with dual smooth track retractable LED lights to illuminate the users rack equipment. It also includes LED status indicators on the front panel to alert the user of voltage irregularities or when protection has been compromised. A 15 Amp rating features a high inrush magnetic circuit breaker is provided for added protection. This unit is backed from Furman by a five year warranty.
- Outlets: 8 - back panel, 1 - front panel
- Max. Current: 15 Amps
- Line Cord: Captive 3/14 AWG, 10' black cord, NEMA 15 Plug
- BNC Socket w/Switch: Rear Rack Lamp, 12 VAC 500MA Max.
- Operating Voltage: 90 to 139 VAC
- Over Voltage Shutdown: 140 VAC Nominal
- Spike Protection Modes: Line to Neutral, Zero Ground Leakage
- Spike Clamping Voltage: 188 VAC Peak @ 3,000 Amps
- Response Time: 1 Nanosecond
- Max. Surge Current: 6,500 Amps
- Noise Attenuation: 10 dB @ 10kHz, 40 dB @ 100 KHz, 50 dB @500kHz
- Power Consumption: 12 Watts
- Dimensions (WxDxH): 19" x 10.5" x 1.75"
- Weight: 12 lbs.
- Warranty: 5 years
