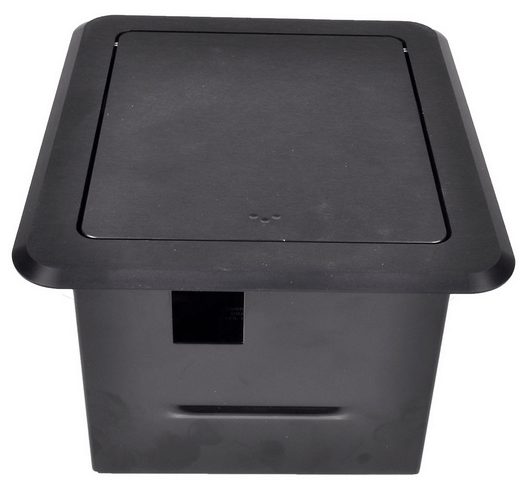

Flip Up Flush Mount AV Table Box w/2 AC, 2 HDMI, 1 Data, 1 USB
The FSR TB-IPS-KITC is a flip up table box for your conference room table that when pressed gently flips up out of the table. The finish is a beautiful black anodized color that looks modern in any room, the housing is all aluminum metal for durability that won't scratch like plastic. The box installs by cutting a 7.25" x 7.18" hole in the table, simply drop it in and secure to the underside with the included brackets and thumb screws. After installed and closed the surface looks flush with the table, the beveled edges make it look even more flush with the table. When you are ready to use simply press the top and the spring automatically flips the lid open to a 35 degree angle showing your connections.
The kit includes the following connections: 2 power with 9' cords, 2 HDMI, 1 RJ45, and 1 passive USB-A. All connections are female to female for easy installation.
The configuration of this model can be changed to meet your requirements. To request a quote for a different configuration or more connections please call us at 888-999-3759, click here to email us, or via Live Chat.
- Color: Black anodized aluminum
- Connections: 2 power with 9' cords, 2 female to female HDMI, 1 female to female CAT6, 1 female to female USB-A
- Tilts open via spring when pressed
- Press down and the unit latches shut flush with the table
- Installs with included brackets and thumb screws that secure to the underside of table
- The unit is modular so connections can be changed in the future as your connectivity needs change
- Bezel dimensions: 7.94" x 7.63"
- Cutout dimensions: 7.25" x 7.18
- Table thickness: .75" to 2.25"
- Depth under table: 4.5"
- Warranty: 1 year
