Dual Sided Pop Up 4 Gang Table Box w/ 2 Power - Black or Silver
The PTB-4 is designed to provide an elegant solution for almost any A/V integration application with your choice or black or brass bezel.

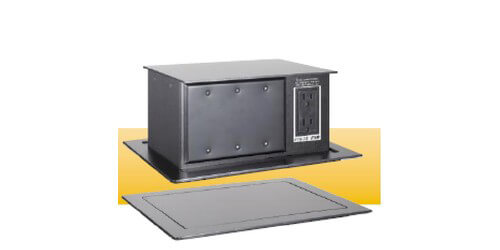

This unit is a 4 gang size featuring a black or brass cover and bezel. PTB table boxes handle data, power, and AV connections in a pneumatically powered “pop up” design.
The PTB’s superior integral manual latching mechanism does not require AC or DC power to operate, simply push down on the cover of the box to raise or lower the unit in the table. FSR’s pneumatic gas spring system allows for smooth lowering and raising of the box for a “high tech” look and feel.
The UL Rated PTB boxes have 2 grounded AC receptacles on each side of the box. These do not take away any space from the plate openings. The AC receptacles are also isolated from the plate openings to alleviate interference with the audio, video, or data signals.

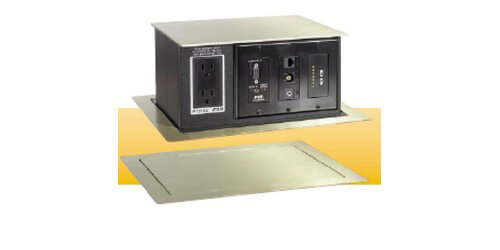

Each side of the PTB is available with a 4-gang opening. These openings will accept standard electrical plates that can be provided by the integrator OR they can be installed with FSR’s line of “Simple Solutions” wall plates. These Decora style wall plates can be populated with snap-in connectors that provide audio, video, data, and control connections to the AV System.
There is an optional built-in 16 volt/1 amp power supply for powering AV interfaces. This also works with FSR’s CI-5BWPA Wallplate Interfaces which can be installed in the “Simple Solutions” Decora wall plates. This is a factory installed option, so it must be ordered when PTB Table Box is ordered.
- 5" high in the open position

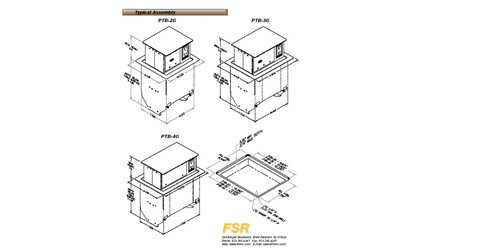

- Bezel dimensions: 13 3/4" x 9 1/2"
- Cutout Dimensions: 12 3/8" x 7 3/4" with 1/4" radius corners
- Depth under table: 11 3/7"
- Black or brass cover and bezel
- 4-gang size
- 2 AC receptacles on each side
- Adjust to table depths in 1 4" increments
- Accepts FSR's "Simple Solutions" Decora wall plates
- Mechanical latch
- Pneumatic gas spring system
- UL Rated
