2" Grade (Soil or Gravel) Floor Box Pour Pan for FL-200

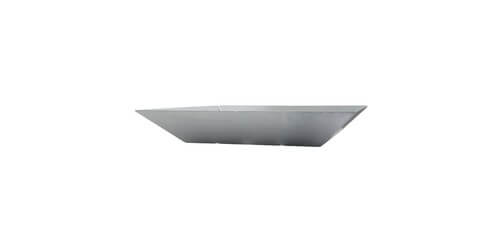

The FSR GRD200 is a 2" deep pour pan for the Fl-200-3 and FL-200-4 concrete floor box that would otherwise rest on soil or less than 2" of concrete. If your application is a poured concrete floor, but the box may rest on soil, rock, gravel, etc., you must first install the Pour Pan. The Pour Pan is set into the grade below the floor box and allows concrete to flow around and under the box to prevent the floor box from contacting the grade. The unit comes with extended length leveling feet, and the unique “pan wings” prevent the pan from shifting during the pour. The pan is designed to provide a minimum of approximately 2” of concrete under the box.
- Depth: 2"
- Includes: Four 5" adjustment legs
- Dimensions: 22x15 3/4"
- Square bottom area: 15 3/4" square
- Compatible with FL-200-3 and FL-200-4
- Weight: 6.32lbs
- Material: Glavanized
- Warranty: 1 year
