FSR FL-500P-10-B
UL Listed Floor Box - 10" Deep
- 10" depth
- Carpet, tile or wood covered floors over poured concrete applications
- Choose from several cover types and colors
- UL, CUL, and scrub water rated
-Patrick S.
Description
The FSR FL-500P-10-B is the premiere choice of installers for concrete pour floor boxes with its versatility and wide range of depths available. This box is perfect for for use in carpet, tile or wood covered floors over poured concrete applications adding a unique look yet practice connection application. House your power, data, audio and video in this UL, CUL, and scrub water rated floor box. The superior construction allows can handle the most demanding floor environment.

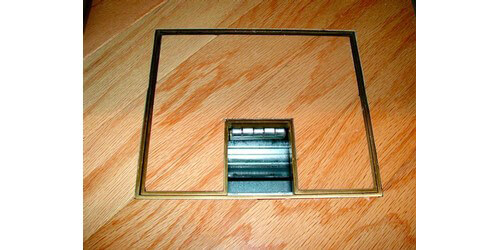

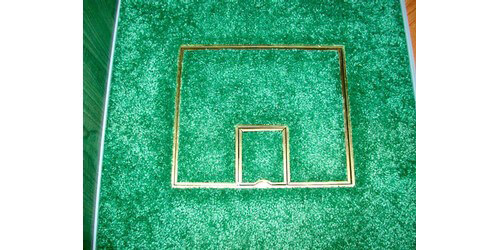

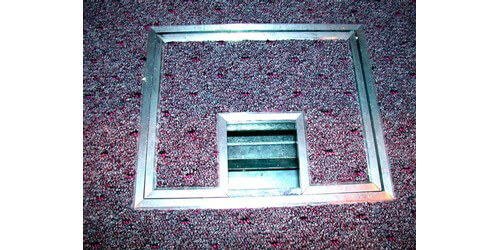

The lift-off section of the cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the handmitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

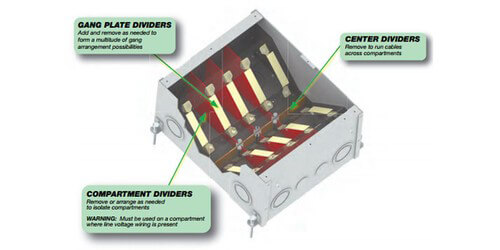

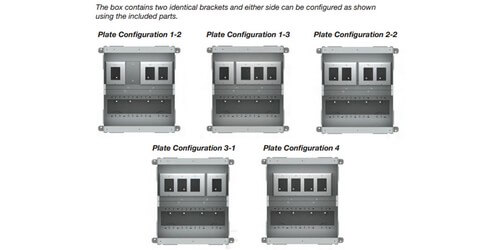

The innovation continues to the transformable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available.
Specifications
- Knockouts: (8) 3/4", (12) 1"/1 1/4"/1 1/2" concentric
