8x8 HDMI 4K Matrix Switcher

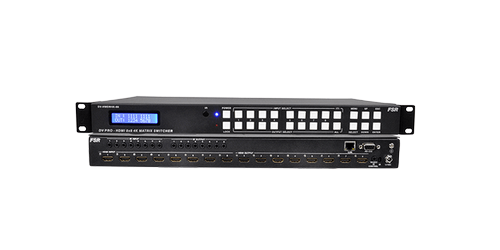

The FSR DV-HMSW4K-88 is an 8x8 HDMI 4K matrix switcher, it features 8 HDMI inputs and 8 HDMI outputs. Choose your inputs and outputs via the included remote control, front panel buttons, RS-232, and IP. The matrix can support resolutions up to 4K at 30Hz, and 1080P at 60Hz and 48 bit deep color. You can send your HD audio including PCM, Dolby TrueHD, and DTS-HD master. The unit is HDCP compliant and passes 3D with a bandwidth of 6.75 Gbps.
Included with the matrix switcher for an easy installation is an IR remote, 9 IR receivers, 8 IR transmitters, and rack ears for easy 1RU mounting. The FSR DV-HMSW4K-88 is a reliable means for your pro A/V HDMI distribution needs.
- 8x8 HDMI matrix switcher
- Inputs: 8 HDMI
- Outputs: 8 HDMI
- Resolution: 4K at 30Hz, and 1080P at 60Hz and 48 bit deep color 4:2:0
- Control: Remote control, front panel buttons, RS-232, and IP
- Supports 3D pass through
- HDCP compliant
- Audio: PCM, Dolby TrueHD and DTS-HD master
- Includes: IR remote, 9 IR receivers, 8 IR transmitters, power supply, and rack ears for easy 1RU mounting
- Dimensions: 17.3" x 9.5" x 1.75"
- Warranty: 3 years
