FOR-A HVS-490 2M/E Type A

Broadcast HD/SD-SDI Video Switcher with Control Panel

Satisfaction Guaranteed!
Part #: HVS-490 2M/E Type A
Your Price: $34,995.00
0 out of 5 based on 0 ratings.

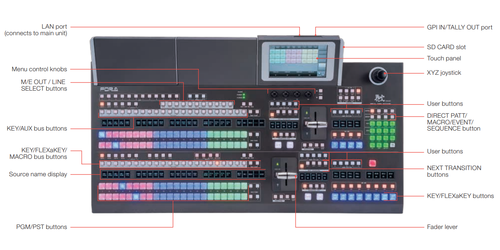

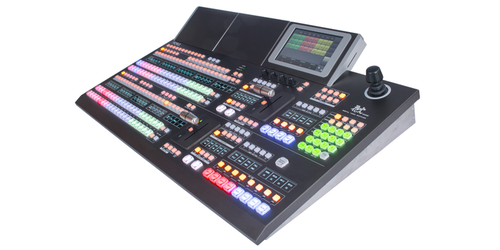

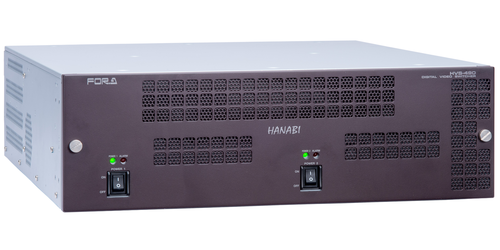

The HVS-490 2M/E Type is is a power house video switcher and control solution brought to you by FOR-A. This quality made broadcast video solution provides 1.5G and 3G standard operation and features the HVS-2180OU 18 button control panel. It offers users 16 HD/SD-SDI inputs and 9 outputs (8x HD/SD-SDI plus 1 HDMI 2.0b). Each input offers a Frame Synchronizer, and the entire system can be optionally expanded to up to 40 inputs and 22 outputs (via optional slot cards). This all encompassing system offers Full M/E- 4 Keyers with quad chroma Key/2.5D DVE,. System includes 4 FLEXaKEY(tm), 4 image stores/900 frame clip player, Triple 16 channel built In Multi Viewer (48 image windows), Macro Function, PC and web based application interface, 18 Aux buses, 2 pair capable MELite(R) transitions and Standard 16 channels of REAL DVE. Package include redundant power supplies for the main control panel and main frame.

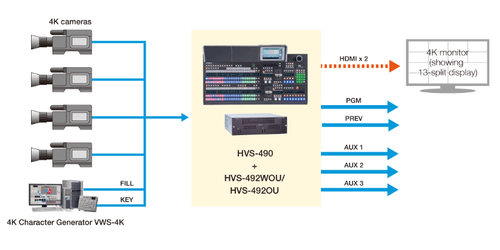

  • 4K UHD Signal
  • 3840 x 2160/59.94p, 50p
  • 3G-SDI (Level-A) x 4 (quad link), 2SI or SQD
  • HDMI Output
  • 2 outputs, 4K UHDTV (3840p_
  • Processing
  • 4:2:2
  • 3G-SDI
  • 10-bit
  • 2.5D DVE
  • Standard: 4(2*), Max: 5(4*)
  • * = at 3840 x 2160/59.94p, 50p)
  • Keyer
  • 2 channels
  • Luminance jeyer
  • Full keyer
  • Bus keyer
  • Box mask
  • 1 channel
  • Luminance keyer
  • Full keyer
  • Bus keyer
  • Output to M/E, MELite, or AUX
  • Color Corrector
  • 1
  • Multi Viewer
  • 3 lines of multi-viewer output
