Video Switcher with 2 M/E 20-Button Control Panel

Satisfaction Guaranteed!
Part #: HVS-390HS 2M/E TYPE A
Your Price: $19,895.00
0 out of 5 based on 0 ratings.

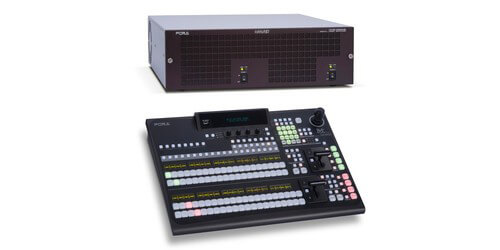

The HVS-390HS 2M/E TYPE A from FOR-A is a high-quality Multi-Format Video Switcher with 2 M/E 20-Button Control panel. This video switcher comes paired with a 2-line, 20-button control panel and features 16 SDI inputs, 8 SDI outputs, and 1 HDMI output. The SDI will support up to 1.5 Gbps speeds and up to 1080i resolutions. Each input have frame synchronizers with 4:2:2 signal processsing and a effecient cooling system to ensure silent operation. The addition of optional boards will allow resizing on more inputs and will also allow resizing computer signals. 8 keyers come standard and each includes a bus and a luminance key and an independent 2.5D DVE. Up to 100 events can be stored, and each can be recalled at the push of a button. This quality made switcher system provides unparralleled broadcast reliability , performance, and versatility with ample enhanced functionality and operability. Making it an ideal solution for use in live events, sports, news studiors, OB vans, editorial venues and presentation venues. The perfect tool to allow video creators and editors to tap into the full creative potential, without being hindered by sub-par equipment.

  • 4 x Keyers on each M/E, including 2 high quality Chroma keyers, can be used as keyers and/or Picture in Picture
  • Freely assign up to 4 x keyers to an AUX output or M/E output (2 from M/E 1, 2 from M/E 2)
  • All keyers include DVE with resize and perspective/tilt, etc. (2.5D)
  • 2 x 3D DVEs on each M/E for background and keyer transitions
  • CG Wipe engine on each M/E offering animated wipe/mix transitions
  • 'Next transition' including direction for all keyers and background on each M/E, as well as FOR-A's On-Air programmable transition section
  • Included Web Browser GUI gives total control and set up from a connected device such as PC, Mac, or Tablet, etc.
  • FTP access for stills and clip sequences, plus built-in USB for stills
  • Increase the number of stills by using spare inputs as extra still stores
  • The Web Browser provides an easy way to edit: Macros, Event Memories and key-frame sequences
  • Industry leading color correction with 2 per M/E, assignable for inputs or entire bus
  • 4 clip store capability with up to 60 frames in each clip store (HVS-39MEM option provides 120 frames) Option to save stills and clips to internal memory (HVS-39MB)
  • Redundant PSU for both Main and Control Panel available, hot-swappable from the front of the MU
  • Safe-area generator and audio monitoring are selectable and adjustable per window on internal multi-viewer layouts
  • 2 x Multi-viewer outputs in HD Mode, each with selectable layouts
  • Standard interface for multiple external device control, including audio mixers, routers, and VTR/VDCP units via RS-422 and VDCP
  • Individually switchable frame synchronizer on each input
  • 4 x Upconverters are standard expandable to 12
  • 16 inputs are standard, expandable to 24 with optional HD/SD-SDI, DVI, VGA, composite or component cards
  • 8 outputs plus 1 x HDMI output are standard, expandable to 13 with optional HD/SD-SDI, DVI, VGA, composite or component cards
  • Depending on configuration and usage, HVS-390HS has a minimum delay of 1 line in HD
  • Up to 100 m BNC cable can be used to connect Mainframe and control panel
  • Dedicated Black Burst or Tri-Level sync output
