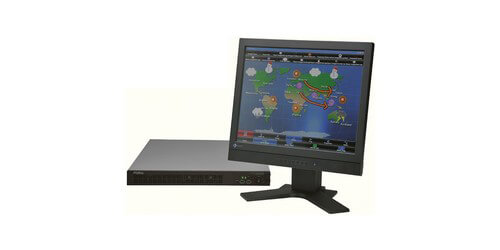

FOR-A FVW-500HS
HD Video Writer without Touch screen, HD-SDI I/O - Video Writer

Description

The FVW-500HS from FOR-A is a telestrator (video writer) system that enables freehand drawing and positioning of objects and image files over video. The FVW-500HS is ideal not only for replay commentary in sports broadcasts, weather forecasts, and news programs, but also provides the ultimate in freehand tools for creating educational materials and usage in various medical venues. The FOR-A FVW-500HS provides the ultimade freehand tool for broadcast engineers through freely assignable customer buttons, stright line, circle, and freehand drawing, spotlight effects, paste movie and still images, undo function, and DSK On/Off capabilities.

Specifications

• 4:2:2:4 digital component
• Quantizing
• 10-bit
• Video Inputs
• HD-SDI: 1.485/1.001 Gbps or SD-SDI: 270 Mbps, 75 Ohms, BNC x1
• Video Outputs
• HD-SDI: 1.485/1.001 Gbps or SD-SDIL 270 Mbps, 75 Ohms, BNC x4
• Genlock Input
• BB: NTSC: 0.429V (p-p) / PAL: 0.45V (p-p) or tri-level sync: 0.6V (p-p), 75 Ohms (termination required) or loopthrough, BNC x1
• +/-0.5H relative to genlock signal phase
• i/O Delay
• 1 frame when the phase of input video is the same as genlock
• Interfaces
• DVI-I x1 (1280 x 1024)
• RS-232 C 9-pin, D-sub male, 1 port
• VGA: Output resolution: SXGA (1280 x 1024), 15-pin mini D-sub (female) x 1
• USB: 2.0, Series A type connector x 2 (2 on the front panel), 3.0, Series-A type connector x2 (2 on the rear panel)
• LAN1, LAN2, REMOTE: Not Used
• GPI/Alarm: 15-pin mini D-sub (female) x1
• ALARM: Power and fan alarm (relay make contact output)
• GPI: 1-input (contact closure) 1-output (open collector)
• Audio out: 3.5 mm stereo mini-jack x1
• Power Consumption
• AC 100V-240V, +/-10%, 50/60 Hz, 110 VA (115W) at 100 VAC, 132 VA (118 W) at 200 VAC
• Dimensions (W x H x D)
• 430mm x 44mm x 500mm
• Weight
• 9 kg
• Accessories
• Operation manual, AC cord, rack mount brackets
