ECA Interface G2
Cable Well w/ 4 Power, 1 HDMI, 1 VGA, 2 Charging USB, 2 Data
The ECA Interface G2 is a table box for your conference room table, it is a cable well style box with a manual lift up lid. It mounts flush in your table, when you need access to your connections you lift the lid. When you are done you close the lid, there is a small gap in the lid that allows users to close the lid with cables still plugged in. The connections in the box include 4 power outlets, 1 HDMI, 2 (2.1A) charging USB, 2 CAT6, 1 VGA, and 1 audio. The VGA is F-F and 6' long, the audio is F-F, the HDMI is M-M and 3' long but includes a coupler if you need to make the cable longer, and the CAT6 is a Siemens punch down.

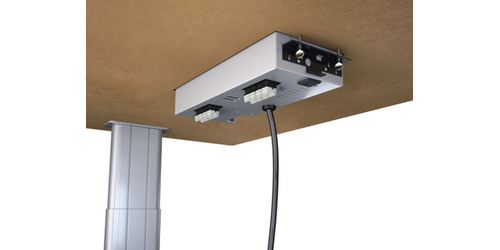

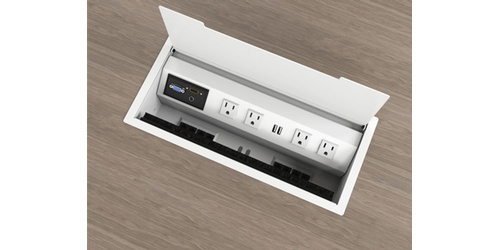

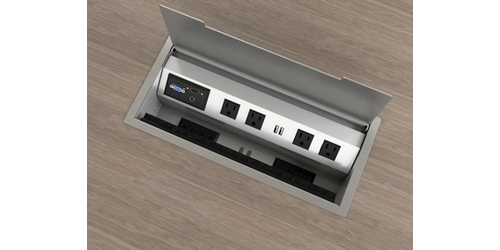

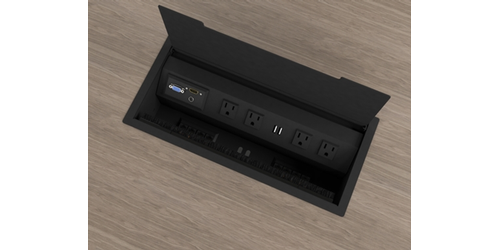

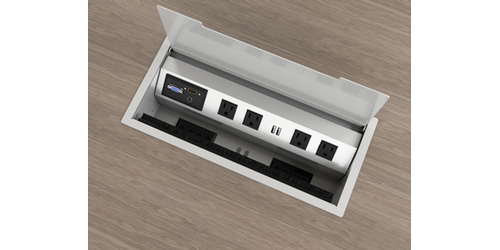

On the bottom side of the unit is a power outlet, ideal if you need to plug in any device that needs power. The Interface G2 comes in an assortment of colors including black and silver powder coat, gloss white brushed anodized aluminum, and brushed stainless steel.
Please Note: The pictures shown are sample configurations to show color options. Actual product may vary.
- Connections: 4 power, 1 VGA, 1 audio, 1 HDMI, 2 (2.1A) charging USB, 2 data
- Colors: Black and silver powder coat, gloss white, brushed anodized aluminum, and brushes stainless steel
- Lid: Manual tilt up
- Single 6' power cable
- Power outlet on underside of box
- Table thickness: 7/8" - 2"
- Bezel dimensions: 14.19" x 6.39"
- Cutout dimensions: 13.635" x 6"
- Depth: 3.38"
- Integrated brushing in lid opening to keep debris out
- ETL listed
- Warranty: 1 year
- Includes: HDMI coupler
