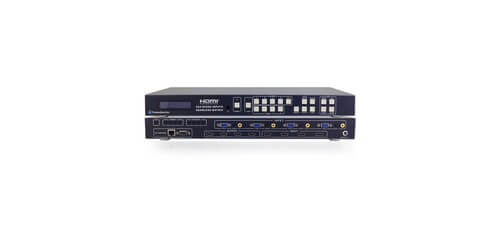

Comprehensive CSW-HD455KM
4X4 Multi-Input Seamless Matrix, Video Wall, HDCP
- Input Ports: 4x HDMI, 4x VGA, 1x RS-232, 1x RJ45, 5x IR, 4x Audio on Stereo 3.5mm Jacks
- Output Ports: 4x HDMI, 5x IR
- Video Bandwidth: Up to 10.2 Gbps
- Power Supply: DC 12V 2.5A
-Patrick S.
Description

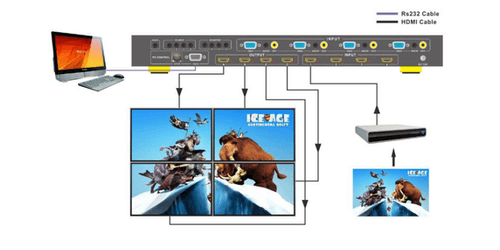

Introducing the CSW-HD455KM 4X4 Multi-Input Seamless Matrix from Comprehensive with Video Wall Function and HDCP 1.3. This high performance device combines 4 digital video signal inputs and outputs, as well as 4 analog signal inputs with embedded audio function. The Seamless Switching Output provides an optional seamless switching mode that allows for fast switching, blinds, and fade in/fade out. This matrix switch offers advanced digital technology with scaler function and provides a variety of formats to achieve a unified output signal. The user can easily control the sources and displays of this device by utilizing the IR remote control, RS-232 control, IP control, or front panel push buttons.
Additional Features of this Matrix Switch Include:
- Input video supports 4x HDMI, 4x VGA and 4x Composite video
- Compliant HDMI 1.3, HDCP 1.3 and DVI 1.0
- Supports smart EDID management
Specifications
- Power Consumption (Max): 13.5W
- Input Resolutions: Up to 1920 x 1080p
- IR, RS-232, TCP/TP, Front Panel Buttons
- ESD Protection: 8kV (air-gap discharge), 4kV (contact discharge)
- Dimensions (WxDxH): 17.5 x 8 x 1.75"
- Chassis Material: Metal
- Weight: 5.25 lb.

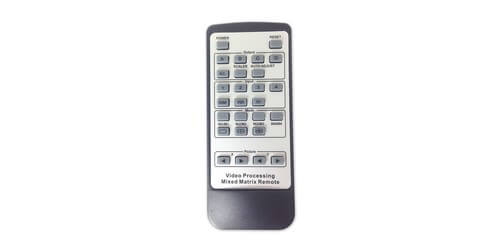

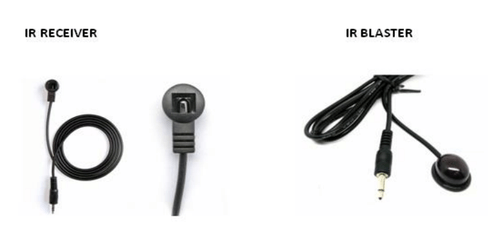

- Included Accessories: Power Adapter, Operation Manual, 4x IR Tx Cables, 5x IR Rx Cables, Mixed Matrix IR Remote, 2x Mounting Ears, RS-232 Cable
- Warranty: 2 Years
