HDMI 1080p Range Extender Kit, Tx & Rx over Cat5e/6 - 164'

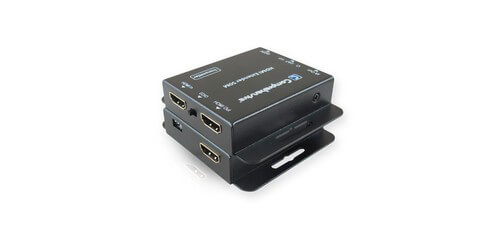

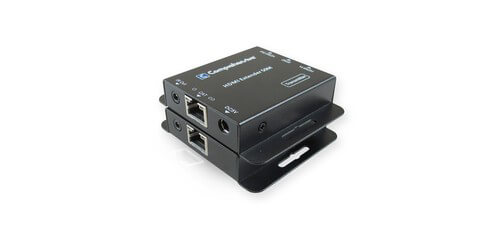

Featuring the CHE-1 HDMI 1080p over Single Cat5e/6 Range Extender Transmitter and Receiver Kit from Comprehensive with range up to 164 feet. These units have a signal transfer rate up to 4.95Gbps and includes EDID control that provides source and display 'handshake' for seamless integration. Additionally, they have an HDMI loop output for a local monitor hookup and Bi-directional IR pass-through which allows for control both the display and the source. These devices come backed by a two year warranty from Comprehensive.
Additional Features of this CHE-1 Comprehensive Kit Include:

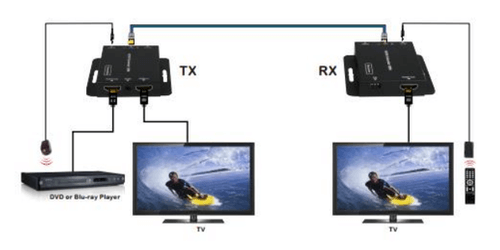

- Allows for cascading via additional HDMI loop out port
- Supports Power over Cable (POC)
- HDMI and HDCP Compliance
- Follows standard IEEE-568B
- RoHs Compliant
- Compact size
- Transmitter Input: HDMI x1, Output: CAT5e/6 x1
- Receiver Input: CAT5e/6 x1, Output: HDMI x1
- Resolutions (HDTV): Up to 1080p
- Transmission Distance: 164' using CAT6, or 132' using CAT5e for a 1080p signal
- Video Amplifier Bandwidth: 4.95Gbps
- Vertical Frequency Range: 50/60Hz
- Color Depth: 24-bit color
- Power Supply: 5V DC@1A
- Regulatory Approvals Converter: FCC, CE, UL
- Regulatory Approvals Power Supply: FCC, CE, UL
- Weight: 0.85 lb.
- Included Items: HDMI Tx, HDMI Rx, Windband IR Tx Cable, Windband IR Rx Cable, Power Supply Adapter, Product Manual
- Warranty: 2 Years
