Avenview W-HDM3D-100-SET

Wireless 60GHz 3D HDMI Extender Set with Full HD Support

Satisfaction Guaranteed!
Part #: W-HDM3D-100-SET
Regular Price: $2,995.00
Instant Savings: -$89.85
Quantity: $2,905.15
0 out of 5 based on 0 ratings.

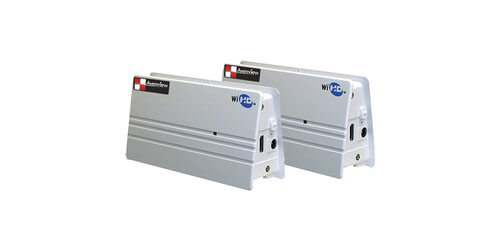

The W-HDM3D-100-SET from Avenview is a wireless 60Ghz extender set that includes both a transmitter and receiver unit which have the ability to support 3D and Full HD video outputs. This system has been engineered for use primarily in Medical type applications. This system was designed ot have the transmitter wirelessly send high-quality audio and video (up to 1080p@60) to a paired W-HDM3D-R-100 receiver in a typical operating room. The transmitter connects to a video source (such as an endoscopic camera) via an HDMI or HDMI-to-DVI cable. The receiver can be connected via an HDMI or HDMI-to-DVI cable to a video monitor. You can use up to six pairs of the W-HDM3D-100-SET transmitter/receiver combinations can be used simultaneously within the same room if they operate at different frequencies within the 60 GHz band.

The W-HDM3D-100-SET is designed to be unaffected by cell phones, RFID, wireless 802.11 b/g/n. The 60Ghz operating frequency cannot pass through walls and will work within a 33' radius. The 128-bit AES encryption ensures that no other devices can speak with the W-HDM3D-100-SET.

W-HDM3D-100- KIT (Included In Package):
CW-HDMDVI-100 Scalar/Converter
Some medical device manufacturers prefer not to use the normal standardized timings for HD resolutions. If this is the case with your intended source, then the W-HDM3D-100 will be unable to successfully transmit video from your source to the desired display. In this situation, the CW-HDMDVI-100 scalar/converter can be used to regulate the signal from the source into a standardized video signal that the W-HDM3D-100 system can understand.


CW-PS-HDMSP-100 DC Splitter
There are times in the operating room when finding enough power outlets is an issue. In order to minimize the amount of power outlets used by the W-HDM3D-100-SET pair, the DC Splitter option can be used in order to draw power from the monitor cable to be used for the W-HDM3D-R-100 receiver. This DC Splitter will work only with Foreseeson monitors, and has been tested to have no effect on the performance of either the monitor or the W-HDM3D-R-100 receiver.

  • **This Kit Comes with Both a Transmitter and Receiver**
  • Transmitter Specs
  • Input: HDMI
  • Output: HDMI (local out)
  • Bandwidth: 4Gb/s over-the-air data transfer rate
  • Video Resolutions: 1080p @ 60Hz
  • Transmission Range: Full HD 1080p about 32.8'
  • Audio Support: Surround Sound (up to 7.1 channel) or Stereo Digital Audio
  • HDMI Compliance: HDMI 1.4a
  • HDCP Compliant
  • Power Consumption: Normal 15 W / Standby 10 W / Off 1 W
  • Power Supply: 90 to 240 VAC approximately, 50 to 60 Hz input, 5 VDC, 2 A
  • LED Indicators: 1 LED display, power indication
  • Receiver Specs
  • Input: HDMI
  • Output: HDMI (local out)
  • Bandwidth: 4Gb/s over-the-air data transfer rate
  • Video Resolutions: 1080p @ 60Hz
  • Transmission Range: Full HD 1080p about 32.8'
  • Audio Support: Surround Sound (up to 7.1 channel) or Stereo Digital Audio
  • HDMI Compliance: HDMI 1.4a
  • HDCP Compliant
  • Power Consumption: Normal 15 W / Standby 10 W / Off 1 W
  • Power Supply: 90 to 240 VAC approximately, 50 to 60 Hz input, 5 VDC, 2 A
  • LED Indicators: 1 LED display, power indication
  • Included Accessories: 2 x Medical Grade Power Cord, 2 x Medical Power Adaptor (5V/2A), Bracket (Standard Type for Installing) and Screw, Bracket (Medical type for installing) and Screw, HDMI to HDMI Cable, Cable Guides and Extra Screws
  • Warranty: 3 Years
