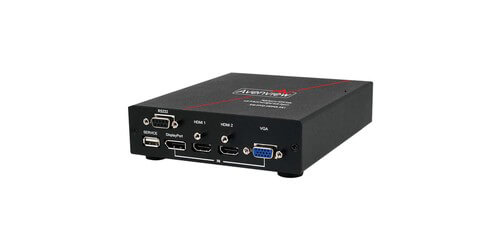

Avenview SW-HVD-HDMA-4X1

Multi Input Scaler to HDMI with IR RS232 and Audio Support

Satisfaction Guaranteed!
Part #: SW-HVD-HDMA-4X1
Regular Price: $749.00
Instant Savings: -$22.47
Quantity: $726.53
0 out of 5 based on 0 ratings.

The SW-HVD-HDMA-4X1 is a Multi-Inpit Presentation Switcher with IR, RS-232 and Audio Support from Avenview. This product was designed to enable users to seamlessly switch between 4 different video/audio sources to a single HDMI connected display. Being a very reliable and well made scaler/switcher this is an ideal solution for combining and scaling digital or analog video sources between your digital HDMI display this eliminating extra costs for upgrading individual components already existing in your system for example a DVD player, PC, or VCR.

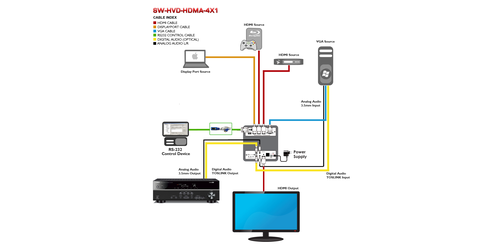

The SW-HVD-HDMA-4X1 features two HDMI ports, a DisplayPort, and a VGA port for connecting video sources like a DVD player or PC and set-top boxes. There is also an Optical TOSLINK and a 3.5mm mini jack provided for audio input which will support LPCM 7.1Ch, Dolby TrueHD, and DTS-HD Master Audio. Control of this unit is achieved through IR Remote or an RS-232 9-pin connector from an RS-232 serial equipped control device. The switcher/scaler has the ability for supported embedding and de-embedding for the audio signals from individual inputs or from the HDMI source, and also uses a digital and analog audio bi-directional conversion. This unit comes with an included IR Remote, power adapter, and 3 year warranty from Avenview.

  • Inputs: 2 HDMI, DisplayPort, VGA/Component
  • Outputs: HDMI
  • Resolutions: HDMI/Component up to 1080p @60Hz, DisplayPort up to 2560 x 1600 @60Hz, VGA up to 1920 x 1200 @ 60/75Hz3D
  • Bandwidth: DisplayPort 2.7Gbps, HDMI 6.75Gbps
  • Audio Support: LPCM 7.1Ch, Dolby TrueHD, and DTS-HD Master Audio
  • Control: RS-232
  • TMDS: Output Signal 1.2V (peak-to-peak)
  • Supports digital and analog audio bi-directional conversion
  • Supports embedding and de-embedding for the audio signals from individual inputs or from the HDMI source
  • Supports Component Video input via D-sub 15-pin to 3 RCA adapter
  • Chassis Material: Metal
  • Power Supply: 9W, 5V DC, 2.6A
  • Included Accessories: IR Remote and batteries, 5V 2.6A Power Adapter
  • Warranty: 3 Years
