Avenview HDM2-SPLITPRO-T4K
4X1 HDMI Multiviewer with Rotation - 4K@60Hz 4:4:4 UHD
- Inputs: 4 HDMI, RJ-45/RS-232
- Output: HDMI
- Supported Resolutions: Input up to WUXGA or Full HD 1080p@60 / Output up to 4K@60 4:4:4
- Video Bandwidth: Input HDMI 6.75Gbps / Output HDMI 18Gbps
-Patrick S.
Description

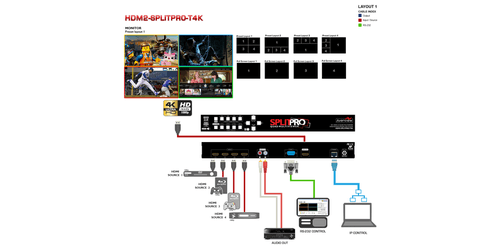

The HDM2-SPLITPRO-T4K from Avenview is a 4x1 HDMI Quad Multiviewer that can upscale multiple sources to Ultra HD 4K60 4:4:4 on a single screen. By being design to support higher output resolutions 4K60 4:4:4 for multiple sources on a single screen, this HDMI device can accept up to 4 HDMI input digital sources and the combing four video signals onto a single HDMI UHD or HD monitor. With built-in control software the user can then easily manage and control each input via the supplied software and create any layout and position of any of the 4 inputs on the one display. With a wide range of supported input video resolutions to include WUXGA@60 or full HD 1080p and audio RCA breakout for external audio distribution systems, this is a great device for use in government, security, and medical type applications. Additionally audio channels can be selected to playback with input or can be muted at the users discretion.
The primary features of the HDM2-SPLITPRO-T4K quad multi-viewer include Fast Switching, Crop, PIP/PAP/Overlay, Window Scale and Position, and Scalable Rotation. With fast switching the user gains the ability from extremely fast processing power to switch between 8 user defined functions via IR Remote, Ethernet, or RS-232. This device features PIP, PAP, and Overlay functions that make it so you can select picture in picture mode, picture aside picture or overlay one picture on top of the others using the supplied control software. With window scaling and positioning users can change individual channel size and choose different positional layouts on the single monitor. Finally there is an option to rotate/scale only a single input/window image left and right. Control of this unit is achieved through RS-232, Ethernet, IR Remote, or via the front panel buttons.
With 8 custom saved layout buttons on the IR remote, and 8 preset Hot Keys with 4 custom layouts, and 4 full screen layouts within the supplied control software, the HDM2-SPLITPRO-T4K Quad Multi-viewer from Avenview is a very well rounded user friendly device that would be a great addition to any Pro A/V setup requiring custom screen layouts from multiple sources to one high-definition display. Comes backed by a 3 year warranty from Avenview.
Specifications
- HDCP 2.2 and HDMI 2.0 Complaint
- Layout Configurations: PIP, PAP, Overlay, Single Input Scaling and Rotation
- Control: RS-232,Ethernet, IR Remote and front panel buttons
- Supported Audio: LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/ Dolby TruHD & DTS-HD
- 8 preset Hot keys with 4 Custom layouts and 4 Full screen layouts within the supplied control software
- 8 Custom saved layout buttons via the IR Remote
- Audio dembedded via RCA Left and Right audio connectors
- RS232 port for Service mode and firmware upgrade
- DIP Switch: Single DIP Switch
- Switching Speed: 8 kV (air-gap discharge) & 4 kV (contact discharge)
- Included Accessories: Power Supply, IR Remote (28 keys), User Manual
- Warranty: 3 Years
