4K HDMI/Audio Over CAT5e/6/7 Extender Set w/ 48V PoE - 328'

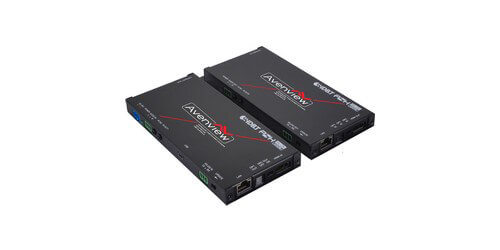

The Avenview HBT2-C6POH-SET is a range extender set for 4K60 HDMI and Audio over Single CAT5e/6/7 that includes a transmitter and receiver unit. This system was designed to send uncompressed audio/video signal over a single CAT cable up to 328' and has the added benefit of control through a built-in RS-232 and IR ports. LAN ports are also available on these units which allows for network connection and external digital and analog audio capability that gives the users the convenience of an additional audio connection. The receiver in this kit is powered by PoE coming from the transmitter which comes with, and uses a 48V power adapter thus eliminating the need for a separate power supply for the receiver.
This system that supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS HD Master Audio features an ultra-thin mechanical designs that allows a flexibility in mounting positions to help save on space consumption. Both external analog and digital audio transmissions are supported as well. Using HDBaseT 2.0 specification over a single CAT6/7 cable this system can send signals up to 328' and CAT5e cable up to 295'. When needing a high-quality yet affordable transmitter/receiver system the Avenview HBT2-C6POH-SET is an ideal solution to all your conference room, digital signage, military, of educational type applications that need to send pristine image quality and audio over greater cable runs.
**This Set Comes with Both a Transmitter and a Receiver**
- Transmitter Inputs: HDMI, USB, L/R (Terminal Block), LAN,IR Extender, RS-232 (Terminal Block)
- Transmitter Outputs: CAT5e/6/7, Optical, IR Blaster
- Receiver Inputs: CAT5e/6/7, Optical, IR Blaster
- Receiver Outputs: HDMI, L/R (Terminal Block), LAN,IR Blaster, RS-232 (Terminal Block)
- Supported Resolutions: Cat5e/6/7: 328' - Up to 1080p@60 Hz / Cat5e: 295' - 4K2K@30/60Hz / Cat6/7: 328' - 4K2K@30/60 Hz
- Bandwidth: 10.2Gbps
- HDCP 2.2 and HDMI 2.0 Compliant
- Control: IR Remote, RS-232, front panel, Ethernet
- Audio Return Channel
- HDBaseT 5Play convergence: High-Definition (HD) Video and Audio, 100BaseT Ethernet, PoE and Control (Bidirectional IR/RS-232 pass-through)
- Supported Audio Formats: LPCM 2CH,6CH,8CH/AC3/DTS/Dolby Digital Plus/TruHD & DTS-HD
- Baud Rate: Up to 115200 bps
- Power Supply: 48V/0.83A DC
- Warranty: 3 years
