Avenview HBT-C6BPOC-SET

HDMI 4K HDBaseT Cat 5e/6/7 Extender Kit, HDCP - 328'

Satisfaction Guaranteed!
Part #: HBT-C6BPOC-SET
Your Price: $449.00
Quantity:
0 out of 5 based on 0 ratings.

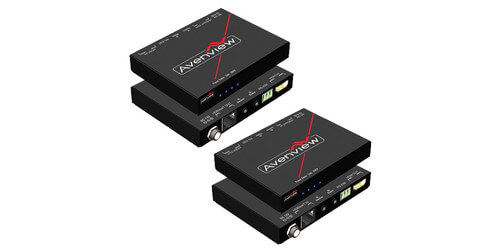

The HBT-C6BPOC-SET from Avenview is an HDCP compliant range extender kit that comes with both an HDBaseT Transmitter and a HDBaseT Receiver. Extend your 3D, HD, and 4K30 HDMI signals, bi-directional IR and RS-232 control, and power over a single Category cable. Using HDBaseT technology this system creates a sizable transmission distance advantage over commonly found HDMI cables. This transmitter and receiver kit can faithfully transmit 4K HDMI signals up to 264' and HD HDMI signals up to 330'. With HDMI signal not be converted or altered, all relevant signal information is equally maintained. Multi-channel audio, HDCP, EDID, and CEC are all passed through to the receiver. Since power is also supplied over HDBaseT, this kit only requires the one included power supply. The HBT-C6POE-SET offers the most convenient solution for extending an application over long distances with A/V transmission @10G.

  • **This Set Comes with Both a Transmitter and a Receiver**

  • HDMI Compliance: 3D, DCI 4K 30p, UHD 30p
  • HDCP Compliant
  • Bandwidth: 10.2Gbps
  • Support Resolutions: Up to 4K30
  • Resolution Distances: Full HD: 1080p up to 328' 8-bit via Cat 5e/6 cable & 4K: 3840 x 2160 up to 264' 8-bit via Cat 5e/6
  • Audio Supported: DTS-HD Master Audio, Dolby TrueHD, Dolby True HD
  • Support PoC (Power over Cable) power either units from the TX or RX side with one power supply - Supports HDCP & EDID Bypass
  • Transmitter Inputs: HDMI, 3.5mm IR Receiver
  • Transmitter Outputs: RJ-45 HDBaseT, 3.5mm IR Blaster
  • Receiver Inputs: RJ-45, 3.5mm IR Blaster
  • Receiver Outputs: HDMI, 3.5mm IR Receiver
  • Bi-directional IR pass-through
  • Full Duplex RS-232 control up to 115,200 bps
  • Support full frequency IR signal from 20KHz to 60KHz
  • RJ-45 Connector: WE/SS 8p8C with 2 LED indicators 3-pin
  • RS-232: Phoenix connector 115,200 bps
  • Power Supply: 24V DC, 1.5A
  • Power Consumption: Transmitter 3W & Receiver 7W
  • Package Contents: Transmitter, Receiver, IR Blaster, IR Receiver, Power Brick with Cord
  • Warranty: 3 Years
