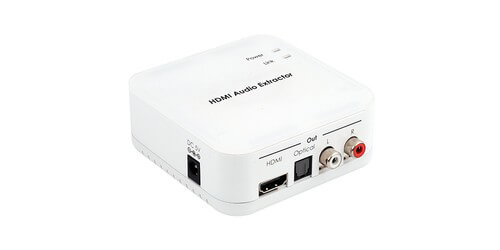

Avenview C-HDM-EXD-A

HDMI Audio Extractor - HDCP 1.2 and DVI 1.0 Compliant

Satisfaction Guaranteed!
Part #: C-HDM-EXD-A
Regular Price: $249.00
Instant Savings: -$7.47
Quantity: $241.53
0 out of 5 based on 0 ratings.

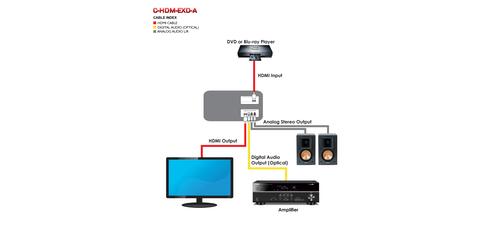

The Avenview C-HDM-EXD-A is a HDMI Audio Extractor which allows extraction of audio signals from any HDMI source. This then works by sending the original, unaltered HDMI audio or video signal to the display in a normal unedited format. The extractor then carries the source HDMI signal and converts it to digital optical or analog stereo (L/R) audio. With this HDMI audio extractor all digital audio formats including 5.1/7.1 surround, may easily be converted to analog L/R stereo RCA by setting the audio output switch to 2CH-LPCM. Do note that the HDMI output must be connected to a display for the converter to extract the audio signal.

The C-HDM-EXD-A is both compliant with HDMI, HDCP 1.2 and DVI 1.0 and features an HDMI audio sampling rate of 192kHz, with optical S/PDIF sampling rates up to 48kHz. Other key features of this HDMI audio extractor include: HDMI input supports DVI to HDMI cables and adapters, high-bit-rate audio, EDID management for audio formats so you can switch among built-in EDID (LPCM 2CH/Bitstream) and external EDID (TV), as well as support for 3D signals. This very well made low power consumption device has a maximum input and output HDMI cable length that can run up to 49' at 1080p at 8-bit resolutions. Comes with its own power adapter and is backed by a 3 year warranty from Avenview.

  • Input: HDMI (Supports DVI to HDMI cable or DVI adapter)

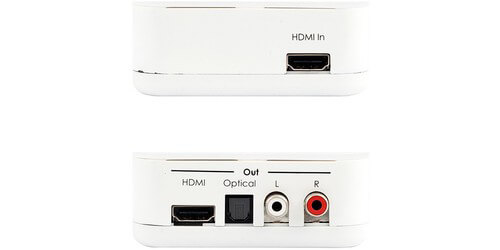

  • Output: HDMI, Optical (TOSLINK), Stereo RCA L/R
  • Audio Sampling Rate: HDMI up to 192kHz / Optical up to 48kHz
  • Audio Format: HDMI: LPCM 2/5.1/7.1CH, Dolby 5.1, DTS 5.1, DD+, D-TrueHD & DTS-HD / Optical: LPCM 2CH, Dolby 5.1 & DTS 5.1
  • TMDS clock frequency rate 225 MHz
  • HBR: High-bit-rate audio
  • Supports 3D signal
  • Maximum input and output HDMI cable length can run up to 49' at 1080p at 8-bit resolution
  • No HDMI output connection is required to receive audio at the analog and optical outputs
  • EDID management for audio formats, can switch among built-in EDID (LPCM 2CH/Bitstream) and external EDID (TV)
  • Power Consumption: 2.1W
  • Power Supply: 5V, 1A
  • Included Accessories: 5V 1.2A Power Adapter
  • Warranty: 3 Years
