Aurora V-Tune Pro 4K
ATSC, QAM, DVB, NTSC, IPTV 4K Tuner w/ HDMI 2.0 Out, HDCP

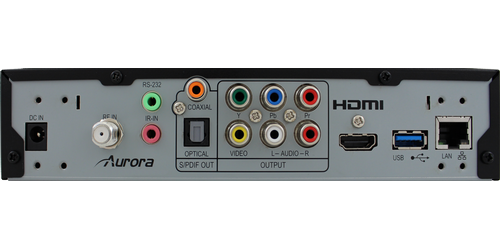

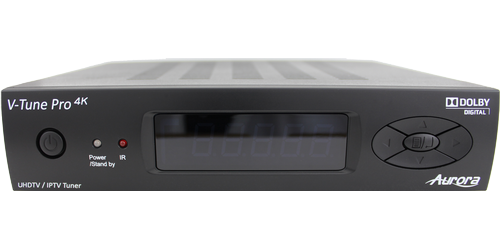

The Aurora V-Tune Pro 4K is a high definition tuner for IPTV, ATSC, QAM, and NTSC. It can also decode MPEG2, MPEG4, VC-1, H.264, and H.265 with resolutions up to 4K at 60Hz via RF and LAN. The tuner can easily be controlled via the front panel buttons, RS-232, IR, or via IP and integrated web pages. The tuner features an HDMI output that is HDMI 2.0 compliant, it is also HDCP compliant. There is also a composite/YPbPr connection for analog devices. There are multiple audio connections including unbalanced stereo RCA connections, S/PDIF, and optical.
The tuner can handle 4K IPTV streaming over H.264 and H.265, you can assign streams to individual channels in the tuner. Now you can simply change channels to go between different streams and channels making operation easy for your different content. Other features include closed captioning, V-chip support, and automatic or manual channel scan.

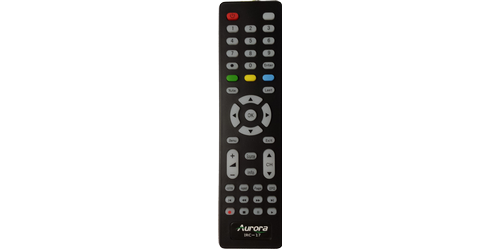

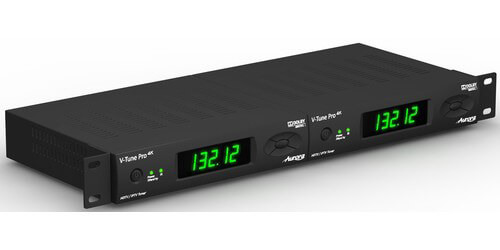

The tuner ships with an IR remote control as well as a single and dual rack mount kits, they are 1RU and the dual can be used with 2 tuners side-by-side in a 1RU space. The tuner is firmware upgradable via online or through a super fast USB 3.0 port.
The Aurora V-Tune Pro 4K is an advanced tuner that supports the latest 4K content with IPTV streaming, and is HDMI 2.0 and HDCP compliant.
- RF input demodulation: ATSC / QAM / NTSC
- IP stream formats: H.265 / HEVC Main Profile, H.264 / AVC Main and High Profile, MPEG-2, MPEG-4, VC-1
- Max resolution: Up to 4K at 60Hz, color space of 8, 10, or 12-bit at 4:2:2 and 4:2:0, 8-bit 4:4:4
- Video outputs: HDMI 2.0 (HDCP Compliant), Composite Video, Component Video
- Audio connectors: Stereo RCA, S/PDIF Coaxial and Optical
- Control: RS-232, LAN Control 10/100/1000 Mbps
- Aspect ratio: 19:10/16:9 / 4:3
- Closed captioning
- V-Chip support
- Automatic or manual scan
- Display compatibility: UHDTV, HDTV, EDTV and SDTV displays
- Decoding: H.265 / HEVC Main Profile, MPEG-2 "MP at HL" and "MP at ML" decoder,H.264/AVC main and high profile to level 4.1,VC-1 advanced profile at level 3,VC-1 simple and main profile,MPEG-4 Part 2 Simple profile at Level 4,MPEG-4 Part 2 Advanced Simple profile at Level 5 (SD only),Advanced Audio Coding (AAC)
- On screen display (OSD)
- LED power and IR status lights
- Firmware upgradable via online or USB port
- Includes: Tuner, IR remote with batteries, power adapter, single and dual rack mounts, 4 screws
- Dimensions: 8.5" x 7" x 1.75"
- Weight: 2.2lbs
- Warranty: 3 years
