4K HDMI/VGA HDBaseT Wall Plate Kit w/ 230' Extender - White
Aurora Multimedia's DXW-2-S1-W-4K is a 4K UHD Wall Plate Kit with a HDBaseT 230' CAT Extender for HDMI and VGA digital signals. This Kit includes the DXW-2 2 gang multi-input Decora style wall plate with HDBaseT CAT extension, and the DXE-CAT-RX-1-4K HDBaseT extender, and the PS0080-1 Power Supply.

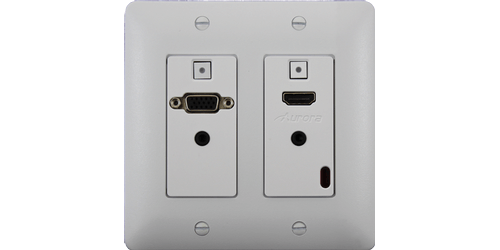

The Aurora DXW-2 is a wall plate that houses 1 VGA, 1 HDMI, and 2 audio. It takes all these signals as well as embedded audio and can transmit them up to 600' over HDBaseT via an Ethernet cable to a compatible receiver, not only does it send the signal but it even converts and scales the signal. The wall plate is even an auto switcher, it will always detect the last plugged in input and automatically switch on your display.
It features support for HD video, IR control, and can be powered locally with an optionally purchased power supply or via the receiver. Push buttons on the front allow for local control of devices if auto switching isn't required. The unit has the ability to receive IR signals via the sensor window on the front of the unit and pass them to the receiver unit for remote control of IR controllable devices.
LED backlights on the buttons always let you know which signal is active for ease of use. The DXW-2 is a an economical and easy to use wall plate with auto switching and HDBaseT transmission.

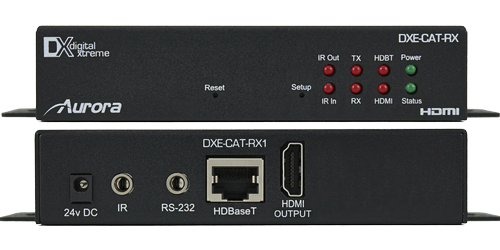

The Aurora DXE-CAT-RX1-4K is an HDBaseT receiver that can accept your video connection up to 230' away as well as power, bi-directional RS-232, and IR. The receiver is HDCP compliant, supports 3d, resolutions up to 4K, and includes a mount for wall or rack mounting. All the connections are on one side with LED lights on the front, the DXE-CAT-RX1-4K is easy to install. The receiver can also send PoH.
This Receiver and Wall Plate both carry 3 year warranties from Aurora Multimedia, and the kit also comes with the PS0080-1 power supply.
- This Kit comes with: (1) White DXW-2 Wall Plate, (1) DXE-CAT-RX1-4K HDBaseT Receiver, (1) PS0080-1 Power supply
- DXW-2 Specs Connections: 1 HDMI, 1 VGA, 2 audio
- Max: Resolution 4K x 2K 4:2:0
- Provides auto switching and input select buttons
- Distance: 330ft over CAT 5e/6/7 cable (1080p 60Hz 48bit),500ft over CAT 6 cable (1080p 60Hz 24bit), 600ft over one CAT 6a cable (1080p 60Hz 24bit)
- Fits in standard two gang plate
- Sends: HD video, IR, RS-232
- Supports 3D pass through
- HDCP compliant
- Color depth: 48bit
- Size: 3.728" x 4.331" x 1.404" (1.04" Box Depth)
- Includes: Wall plate cover
- Warranty: 3 year limited
- DXE-CAT-RX1-4K HDBaseT HDMI receiver
- Resolution: Up to 4K30Hz (340MHz)
- Receives: Power, bi-directional RS-232, and IR
- Distance: Up to 230' with a single CAT5e/6/7 cable
- Includes mount
- HDCP compliant
- Supports 3d
- Power Consumption: 24V 0.65A DC 5Watts
- 3 year limited warranty
- PS0081-1 Specs 48v DC 24 Watt PoE Gigabit Power Supply Injector
- Input Voltage: 90-254V AC 50/60Hz
- Output Voltage: 48V DC
- Output Current: 500mA
- Power: 24 Watts
- Connectors: 1- RJ-45 LAN, 1 RJ-45 PoE (PSE) Output
