Atlona AT-ETU-SYNC

EDID Emulator, 4K60 4:4:4, HDR, HDMI Signals, HDCP 2.2

Satisfaction Guaranteed!
Part #: AT-ETU-SYNC
For pricing & ordering information on this product:

-Please call us at 888-999-3759
-Click here to request a quote
-Contact us via Live Chat
0 out of 5 based on 0 ratings.

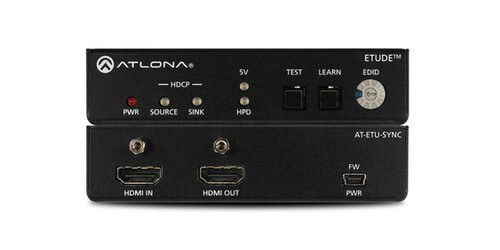

The Atlona Etude Sync (AT-ETU-SYNC) is a cutting edge, high quality EDID emulator for 4K60 4:4:4 HDR HDMI 2.0a signals, while handling data rates up to 18Gbps. This device provides EDID emulation and Hot Plug detection between HDMI sink and source devices while being HDCP 2.2 compliant. Designed to provide users and installers a way to detect and correct for signal integrity issues associated with cabling or connection, the ability to resolve and correct compatibility issues between a source and sink. In addition to being able to handle HDMI signal and device related issues, the Etude Sync will report HDCP compliance at the source and destination as well as managing EDID communications with the source. Making this an ideal solution for system troubleshooting as well as to ensure a reliable, consistent performance throughout your Pro Audio Video System.

The Atlona Etude Sync has been created to be used for both residential and commercial applications providing emulation for the latest in 4K signals, HDCP protocols, and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0a specifications, plus has the ability to pass metadata for HDR content. Comes backed by an amazing 10 year warranty from Atlona.

Signal Ranges for the Atlona AT-ETU-Sync EDID Emulator:

  • HDMI UHD@60Hz up to 6ft
  • HDMI UHD@24Hz up to 16ft
  • HDMI 1080p@60Hz up to 30ft
  • HDMI 1080p@24Hz up to 50ft



  • Input: HDMI
  • Output: HDMI
  • Resolutions: Up to 4K/60 4:4:4
  • Bandwidth: 18Gbps
  • HDMI 2.0a and HDCP 2.2 Compliant
  • Color Depth: 8-bit, 10-bit, 12-bit
  • EDID emulation and management for HDMI signals
  • Hot Plug Detect emulation for HDMI source and sink communications
  • Audio Supported on HDMI Output: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS 5.1, DTS-HD Master Audio, DTS:X, Dolby Atmos
  • Audio Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
  • Audio Bit Rate: up to 24-bit
  • USB-powered with the included power supply or local device
  • Power Consumption: 6.5W
  • Dimensions (HxWxD): 1.02 x 4.29 x 3.50 (inch)
  • Weight: 0.6 lbs
  • Included Accessories: User guide, USB cable, and external universal power supply
  • Warranty: 10 Years
