Atlona 4K-HDVS-EXT
4K/UHD HDBaseT TX/RX Kit w/ 3-Input Switching for HDMI/VGA

Description

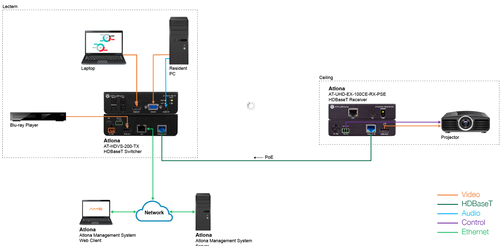

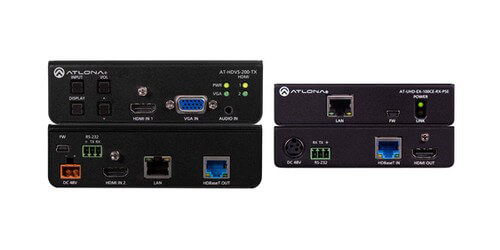

The 4K-HDVS-EXT from Atlona is a HDBaseT Transmitter and Receiver Kit with a 3-input switcher, Ethernet, Control, and PoE, for HDMI and VGA Sources. This kit works as a complete integration solution for 4K60 4:2:0 extension, HDMI and VGA input switching, and automatic display controls. This Kit includes the AT-HDVS-200-TX three-input HDBaseT switcher and AT-UHD-EX-100CE-RX-PSE HDBaseT receiver. It is HDCP 1.4 compliant, has automatic display control using IP, RS-232, or CEC, and an automatic input selection using hot plug detect and video detection technology. The Transmitter in the combo is powered by the receiver via Power over Ethernet (PoE). The 4K-HDVS-EXT from Atlona comes backed by an amazing 10 year warranty.

Click Here to see product details on the AT-HDVS-200-TX

Click Here to see product details on the AT-UHD-EX-100CE-RX-PSE

Specifications

• Specs For AT-HDVS-200-TX
• Inputs: 2 HDMI, 1 VGA, 1 audio
• Distance: Up to 328' using Cat6a/7 cable
• Max resolution: 4096 2160@24/25/30/50/60Hz, 4096 2160@50/60Hz & 3840 2160@50/60Hz supported at chroma subsampling 4:2:0 8-bit only
• HDCP 1.4
• Bandwidth: 10.2Gbps
• Control: CEC, IP, RS-232
• Color Depth: 8-bit, 10-bit, 12-bit
• Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
• HDCP and EDID management
• Includes: Mounting brackets, Captive screw connector (3 pin: RS-232)
• Dimensions: 1.5" x 5" x 4.02"
• Warranty: 10 years

• Specs for the AT-UHD-EX-100CE-RX-PSE
• HDBaseT HDMI receiver
• Resolution: Up to 4K60 4:2:0
• Receives video and control, sends power
• Audio: Embedded
• Bandwidth: 10.2Gbps
• Distance: Receives HDMI signals up to 328' at 1080P with CAT5e/6 or 4K/UHD using CAT6a/7 cable
• HDCP 2.2 compliant
• EDID support
• Allows any multi-channel audio stream to be used within a professional audio system
• Color Depth: 8-bit, 10-bit, 12-bit
• Dimensions: 1 x 4.3 x 3 inches
• Audio Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
• Warranty: 10 years
• Includes: Mounting brackets and power supply

Downloads

• Atlona 4K-HDVS-EXT Specifications (PDF)
• Atlona 4K-HDVS-EXT Manual (PDF)
• Atlona AT-UHD-EX-100CE-RX-PSE User Manual (PDF)
