Arrive AHP-4010-CMMH

Media Management Multi-Format Hub, Integrated Auto Switching

Satisfaction Guaranteed!
Part #: AHP-4010-CMMH
Regular Price: $1,619.00
Instant Savings: -$270.00
Quantity: $1,349.00
0 out of 5 based on 0 ratings.

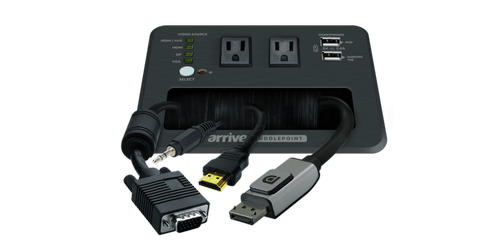

The Arrive AHP-4010-CMMH is an audio and video all-in-one table box for your huddle table, conference room table, or any table that you want an easy to use media hub. The table box features an integrated auto switcher with connections for HDMI, VGA with audio, and DisplayPort, all these connections are converted to a single HDMI out connection.  The switcher detects the last plugged in connection and automatically switches, alternatively you can press the select button and switch between connected sources with an LED light showing the active connections. The switcher also scales all these connections up to 1080P and 60Hz on all source channels so you always have a perfect picture.  There are 2 power outlets in the box, as well as two 2.4 amp USB fast charging ports. On the side of the unit is a three port USB 3.0 hub with a USB host connection allowing you to bring up a USB cable to your table, now you can easily connect to your microphone, camera, or touch display.

The table media hub is easy to set up, start by connecting your video cables (not included) into their connections in the box. Then run them through the cable management hooks on the bottom of the box and up through the top of the box, the wire brushes keep them from falling back down in the box.  Then connect the power and the HDMI out to your display and you are done.

There is a secondary HDMI input that can be connected to the hub allowing you to utilize other HDMI devices such as the arrive AirPoint, AppleTV, BluRay Players, computers, or any device that you want to be able to switch to from the top of the hub with just a push of a button.

The Arrive AHP-4010-CMMH is an all-in-one table media hub that can accept multiple connections and charge your phone or tablet at the same time.

***Cables in picture not included***

  • ***Cables in pictures not included***
  • Color: Black anodized aluminum
  • Video connections: HDMI, VGA with audio, DisplayPort
  • Power connections: 2 AC 110 power, 2 charging USB
  • Built-in auto switching or manual source input button
  • Bezel dimensions: 6.181" x 6.024"
  • Cutout dimensions: 5.59" x 5.43" with rounded corners
  • Depth under table: 8"
  • Integrated cable management
  • Control: RS-232
  • Passes EDID
  • Weight: 4.29lbs
  • Warranty: 1 year
  • Includes: Mounting brackets, screws, (1) 6' DisplayPort cable
