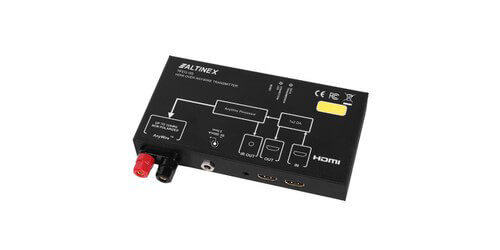

Altinex TP315-105

HDMI over Anywire Transmitter, 1080p - 984'

Satisfaction Guaranteed!
Part #: TP315-105
Regular Price: $475.00
Instant Savings: -$25.00
Quantity: $450.00
0 out of 5 based on 0 ratings.

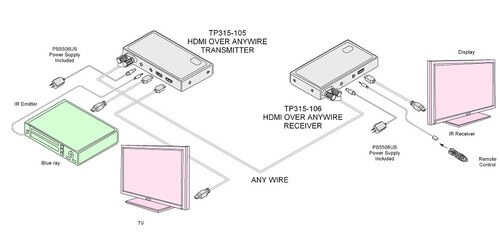

Introducing the TP315-105 HDMI over Anywire Transmitter from Altinex, with high quality 1080p video resolutions, while transmitting across distances up to 984 feet. This device allows the user to connect any 2-conductor wire to transmit HDMI signal. By either daisy chaining the receivers (not included) or using 4 individual wire pairs over 984' each, a single transmitter has the ability to drive up to 4 receivers. To prevent crosstalk from occurring, the user cannot bundle the wire pair from the transmitter to each receiver.

The control of this device is provided without corrupting the HDMI signal during transmission of IR signals by IR pass-through for the receiver side to the transmitter side. This transmitter does't require interaction or user control, however. When the transmitter detects the connected Any Wire receiver (sold separately) input, it then transmits to the receiver and then on to the display.

To set up this device, the user can simply route the wires, cut and trim the installation, then connect the terminals. The Altinex TP315-105 transmitter is an ideal solution in a variety of audiovisual installations. This device is backed by a three year warranty from Altinex.

Additional Features of this Transmitter Include:

  • HDMI over 2-conductor cable
  • Automatic input/receiver detection
  • IR pass-through control
  • Local monitor input
  • HDCP compliant
  • Fixed EDID
  • Input: HDMI
  • Output: Any Wire (Terminal Post F), Receiver End IR (3.5 mm Audio F), AC Power (C7 M)
  • Resolution: Up to 1080p
  • Transmission Distance: Up to 984' (depending on wire type)
  • Power Adapter: +9VDC, 1.1 A
  • Power Consumption: 600 mA (5.4 W)
  • Material: Aluminum
  • Color: Black
  • Weight: 1.0 lb.

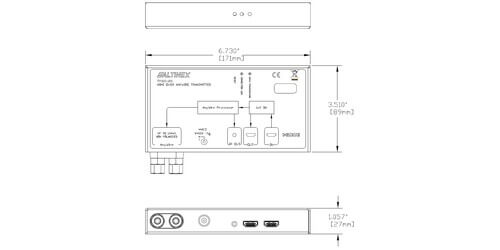

  • Dimensions: 1.05" x 6.73" x 3.51"
  • Warranty: 3 years
