Altinex CNK240
Cable-Nook Tabletop Interconnect Box w/ AC & Brackets
1.png)
- Convenient access to cable ends, retaining bracket adjusts for range of cable types
- Connectors: 2 power, retaining brackets

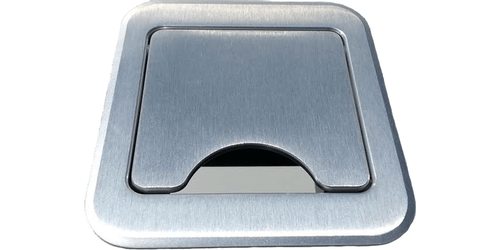

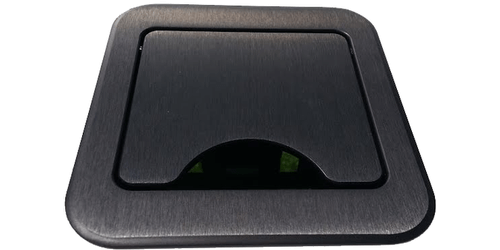

- Color: Black or silver anodized aluminum
- Power: Single 9' cord
-Jeff A.
Description

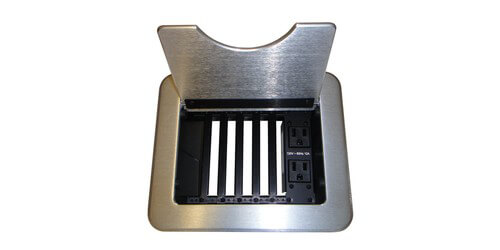

The CNK240 is a cable well that includes 2 power and retaining brackets. Use the retaining brackets to hold cable ends. they are adjustable left and right and can hold a wide variety of different sized cable ends. This set up is nice because the cable is always right there ready to be pulled out, you never have to look for the correct cable. The lid has a half circle in it to allow cables to be plugged in even with the lid closed.

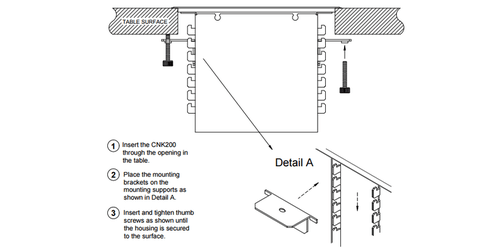

Choose from black anodized aluminum or silver anodized aluminum colors. To install your Cable Nook cut your hole with the cutout template and drop it in the hole, then secure to the under side of the table with the included mounting hardware. The box will install in a wide range of table thicknesses from .5" to 3.5"
If you want to customize your CNK240 there are plates, connections, and retractable cables under the "Accessories" tab, each plate lists the amount of screw holes the plate takes up. The CNK240 can accept 23 screw holes minus the the included brackets and power, the power takes up 6 screw holes .
Specifications

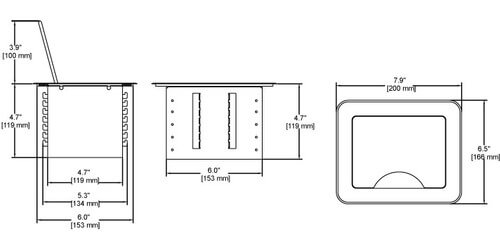

- Bezel dimensions: 7.9" x 6.5"
- Cutout dimensions: 7.46" x 6.13"
- Table thickness: .5" to 3.5"
- Depth below table: 6.5"
- Includes: Everything pictured plus mounting hardware
- Warranty: 10 years
Downloads
Reviews
Write a Review
Accessories
The CNK240 features 2 power (5 screw holes) and retaining brackets however it can accept up to 23 screw holes, use the accessories below to configure your cable well. Each accessory lists how many screw holes it takes up.
