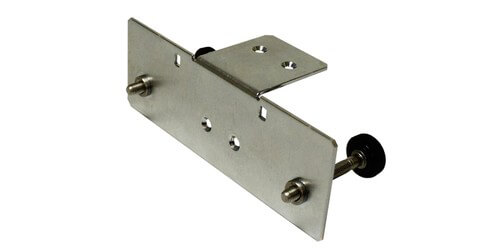

Altinex AC221-125

Retractable Cable Mounting Bracket for CNK JR Cable Nooks

Satisfaction Guaranteed!
Part #: AC221-125
Regular Price: $19.00
Instant Savings: -$0.95
Quantity: $18.05
0 out of 5 based on 0 ratings.

The Altinex AC221-125 is a mounting bracket for CNK JR Cable Nooks, the bracket allows 1 retractable cable to be installed.  Each CNK JR can hold 2 brackets for a total of 2 retractable cables per box.

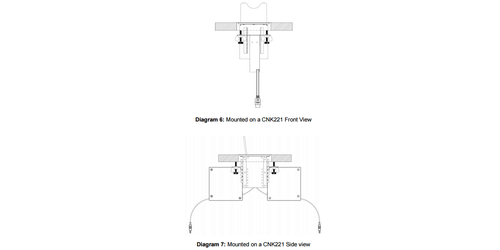

Installation Procedures:
Step 1 Mount the retractable cable onto the AC221-125 mounting bracket and secure it with the four 4x40 screws provided.
Step 2 Slide mounting bracket onto the CNK JR hooks and secure the thumbscrews with the wing nuts provided by the accessories.
Step 3 Feed retractable cable through the bottom of the CNK JR unit and the faceplate.
Step 4 Connect the fixed cable to a display or a switcher

  • Retractable mounting bracket for JR size Cable Nook models
  • Each bracket can hold 1 retractor, each Cable Nook JR can hold 2 brackets
  • Material: Clear zinc
  • ROHS compliant
  • Includes: Thumb screws and wing nuts to attach to Cable Nook
  • Warranty: 10 years
