Retractable Cable Mounting Bracket for CNK Cable Nooks
The Altinex AC200-125 is a mounting bracket for CNK Cable Nooks, the bracket allows up to 2 retractable cables to be installed. Each CNK can hold 2 brackets for a total of 4 retractable cables per box.
Step 1 Mount the retractable cable onto the AC200-125 mounting bracket and secure it with the four 4x40 screws provided.

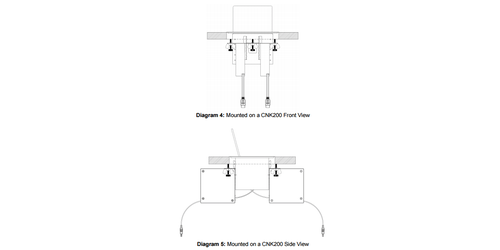

Step 2 Slide mounting bracket onto the CNK hooks and secure the thumbscrews with the wing nuts provided by the accessories.
Step 3 Feed retractable cable through the bottom of the CNK unit and the faceplate.
Step 4 Connect the fixed cable to a display or a switcher
- Retractable mounting bracket for full size Cable Nook models
- Each bracket can hold 2 retractors, each Cable Nook can hold 2 brackets
- Material: Clear zinc
- ROHS compliant
- Includes: Thumb screws and wing nuts to attach to Cable Nook
- Warranty: 10 years
