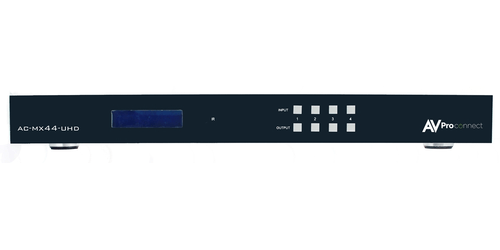

AVPro Edge AC-MX44-UHD
4K60 4x4 HDMI Matrix Switcher w/ HDMI 2.0 & HDCP 2.2
For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
The AVProConnect AC-MX44-UHD is a 4 HDMI input and 4 HDMI output matrix switcher that is HDCP 2.2 and HDMI 2.0 compliant. The matrix switcher supports 4K60 4:2:0 resolution with HDR, HDR is supported by reading the EDID from an HDR capable display and storing it to the input where the HDR source resides. The matrix switcher also features an audio de-embedder for each output that provides 2 channel audio. The matrix can be controlled via the front panel buttons, the included IR remote, IR, RS-232, and LAN.
The AVProConnect AC-MX44-UHD is a reliable way to get your sources to your desired outputs with no signal loss and with HDMI 2.0 and HDCP 2.2 support.
- Inputs: 4 HDMI
- Outputs: 4 HDMI
- Max resolution: 4K60 4:2:0
- Compliance: HDCP 2.2, HDMI 2.0
- Audio de-embedding on each output: 2 channel
- HDMI embedded audio: DTS-HD, Dolby TrueHD
- HDR support
- Control: Front panel buttons, the included IR remote, IR, RS-232, and LAN
- EDID management
- Bandwidth: 10.2Gbps
- Dimensions: 17.3" long, 10" wide, 1.65" high
- Includes: 4x4 matrix, IR remote, IR extension cable, power supply, and rack ears
- Warranty: 10 years
