AVPro Edge AC-MX44-AUHD
18G 4K60 4:4:4 HDMI 2.0b 4X4 Matrix Switcher Up/Down Scaler
Introducing the AC-MX44-AUHD from AVPro Edge. A True 4K60 at 4:4:4 Matrix w/ Digital Audio & Balanced Audio Out with built in 4K Up/Down Scalers, and at 18Gbps Bandwidth. This amazing Matrix Switch supports HDMI 2.0b, HDCP 2.2, and is fully HDR supported. Being widely used in both Commercial and Residential Applications, this switcher is ideal in allowing any source such as BluRay, UHD BluRay, Satellite receiver, gaming consoles, and PC's to be shown on any connected display. While amplifying the output to ensure the HDMI signal will be transmitted through long runs on HDMI cables without loss of quality, for longer runs extend the distance even further with the AC-EX70-UHD. Making this the ideal solution for digital entertainment centers, HDTV retail screens, show sites, classrooms, learning/training/data centers, and business conference rooms. Being able to install in seconds and back by a powerful EDID management system, will get you or your clients up and running quickly and efficiently, while bringing the latest in 4K video resolution and up 18Gbps bandwidth.

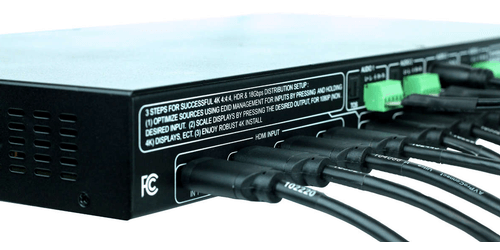

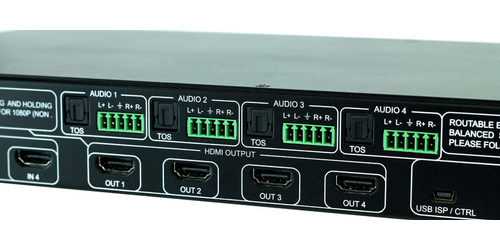

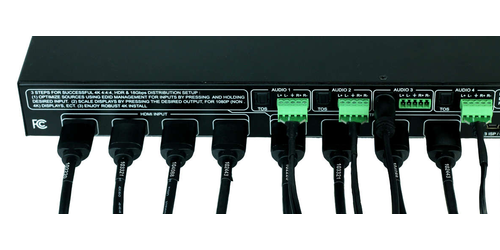

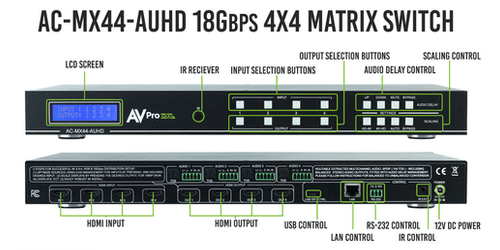

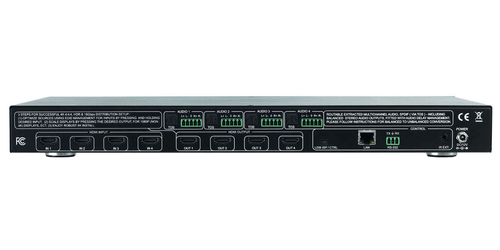

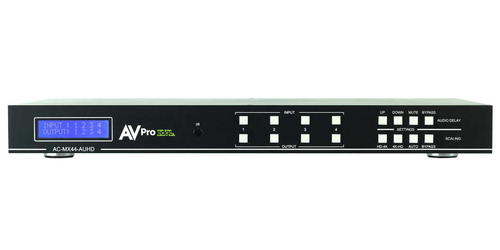

The AC-MX44-AUHD not only competes on price, compatibility, control, but as well on performance. The featured matrix switch application gives the user the ability to route any input to any output or to multiple outputs at any time. Additionally this unit provides Up and Down Scaling solutions between 1080p and 4K resolutions. Wipe away lip sync problems with up to 630ms of delay by being able to manage the audio delay on the balanced or digital outputs per output. The front panel gives the user the power to manage audio delay with a simple push of a button. Also included on the front display is an, LCD display screen, IR receiver eye, 8 input/outputs buttons, and 4 scaler control buttons (HD-4K, 4K-HD, Auto, Bypass). The back panel contains the switchers LAN and RS-232 controls, IR Extension, 4 HDMI Inputs, 4 HDMI Outputs, 4 Audio TOS and Analog Outputs, and a 12V power connection.
Furthermore the AC-MX88-AUHD boasts Dual Audio De-Embedding. This allows users the ability to extract 2 Channel PCM audio from each output t (Balanced 5-Pin Terminal Block, pre-made conversion to L/R cables available). NOTE: the Analog Port only supports 2CH PCM - for down-mixing check out AC-ADM-AUHD or AC ADM-COTO It features 8 digital optical toslink outputs for with support for 7CH LPCM, Dolby Digital, Dolby Digital +, DTS, DTS Master Audio. Extracted audio routing options include the ability to Bind to Output, Bind to Input, and Independent (extracted audio can be routed however you like and there are commands to allow it to function as a separate matrix).
Out of the box for the AC-MX44-AUHD Matrix Switcher you will get: AC-MX44-AUHD(Matrix Switch), Operating Instructions, 12V/4A Locking Power Supply, 1 IR Remote Control, and 1 IR Extension Cable. Also included is a no hassle 10 year warranty, which includes troubleshooting via phone, replacement and shipping covered if its broke, and trouble shooting services for the matrix switcher.
- Inputs: 4x HDMI
- Outputs: 4x HDMI
- Supported Resolution: 4K60 4:4:4
- Bandwidth: 18Gbps
- HDMI 2.0b
- Fully HDR Supported: HDR 10, Dolby Vision
- Built in 4K Up/Down Scalers
- HDCP: 2.2 compliant and earlier versions
- Advanced EDID Management: Maximum flexibility with varied sources and displays, 29 pre-loaded EDID's
- Built in Test Patter on Each Output to Verify Infrastructure
- Instant EDID copy/apply from any display
- Digital Toslink Out
- HDBaseT Compatibility mode for mixed systems and distance runs
- Control Options: IR, RS-232, LAN
- On board Audio Delay: Up to 630ms
- Dual Audio De-Embedding
- Dolby Vision Support
- IR Remote Control and IR Extension Cable Included
- Dimensions (HxWxD): 2" x 10.07" x 17.35"
- Weight: 8lbs
- Included Accessories: Operating Instructions, 12V/4A Locking Power Supply, IR Remote Control, IR Extension Cable
- 10 Year Warranty
