Home > Auto Switchers -> Auto Switching Wall Plates -> AVProConnect -> AC-EX100WPP-UHD-KIT Single Gang Wall Plate Tx/Rx, HDCP 2.2, HDMI 2.0, 4K60

AVProConnect
AC-EX100WPP-UHD-KIT

Single Gang Wall Plate Tx/Rx, HDCP 2.2, HDMI 2.0, 4K60

Satisfaction Guaranteed!
Part #: AC-EX100WPP-UHD-KIT
Your Price: $899.00
Quantity:
Quantity Pricing
1-4
$899.00
5-9
$863.04
10+
$836.07
0 out of 5 based on 0 ratings.

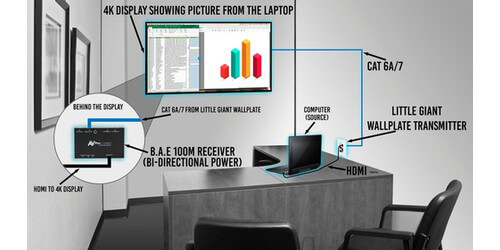

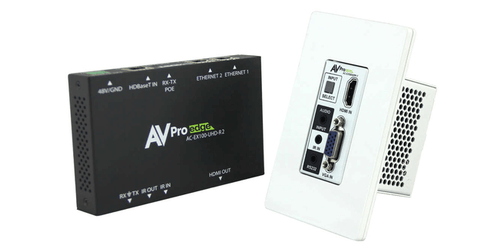

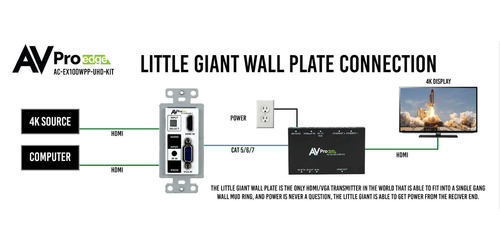

Featuring the AVProConnect AC-EX100WPP-UHD-KIT, 330' HDBaseT HDMI 2.0 Tx/Rx Wall Plate plus VGA, 3.5mm Audio, RS 232, IR, HDCP 2.2 (Receiver Included). This kit features AVProConnects "Little Giant", a super powerful single gang dual input VGA & HDMI auto sensing HDBaseT (over single CAT5e or better) Transmitter. This unit is designed to work flawlessly with all PC, VESA and traditional resolutions 4K 60Hz 4:2:0 8-bit & HDR 4:2:2 12-bit. VGA supports DCI 2K, 1080P, 1920x1200x60. In addition to its compact and robust design, it transmits the digital signal up to 330’ giving users the ultimate flexibility, especially in large rooms like libraries or auditorium style rooms/classrooms. The amazing "Little Giant" has then been paired with the HDBaseT Receiver AC-EX100-UHD-R (version 2) to power the wall plate transmitter from afar using PoE, thus eliminating the need for a power supply unit near the wall plate, to make this an fantastic transmitter wall plate / receiver combo kit that is the perfect solution for sharing information from any computer or source.

Some of the key benefits of using AC-EX100WPP-UHD-KIT include: Ultra High Definition resolutions, Signal Range, Auto Sensing, Control, Power, and being a space saving Single Gang solution. The AC-EX100WPP-UHD-T supports 4K up to 230' with crystal clear 4K60(4:2:0 or 4K30 4:4:4) resolutions & 330' on 1080P. AVProConnect designed this unit to be a "Set it & forget it" piece of hardware. When the user plugs in their device (BYOD), the wall plate automatically senses the signal and makes it active. If bot inputs are in use, there is a simple button on the front to toggle inputs. Control for this kit is achieved via IR & RS232 to allow control of a rack or standalone projector or display. No local power is required when you use the AC-EX100-UHD-R. Power is provided by ultra-stable PoE technology. Optionally you can power it locally for use with any HDBaseT Receiver. Finally a single gang design on the wall plate is a great space saver, and allows for a super clean installation with the single gang configuration, allowing the wall plate to fit in to a wide variety of spaces.

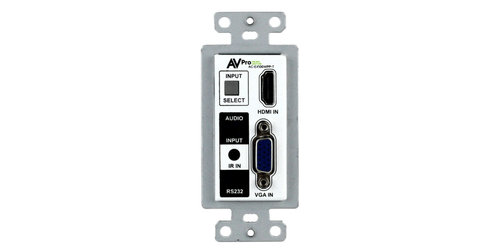

  • AC-EX100WPP-UHD-T Wall Plate Transmitter Specs:
  • Component Type: Single Gang Decora Wall Plate Transmitter
  • Input: HDMI, VGA, Audio, IR, RS-232
  • Outputs: RJ-45
  • Video Resolutions: Supports up to 4K60 4:2:0 and 4K30 4:4:4
  • HDMI 2.0 and HDCP 2.2 Compliant
  • Bandwidth: 10.2Gbps
  • Resolution Range: 330' on 1080P, Up to 230' on 4K over (Cat6a)
  • Additional Resolutions: VESA: up to 2560x2048 (QSXGA) / HDR: 4K24 4:2:2 12-bit, 4K24 4:2:0 10-bit / VGA: Up to DCI 2K, 1080p/60, 1900x1080/60
  • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 Supported
  • Supported Audio Formats: Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos
  • Rugged, long-life chassis
  • Plug & Play auto input sensing
  • Select-able input (If both are plugged in)
  • Single UTP/STP LAN cable (CAT-5E/6A) for all signals
  • ESD protection circuitry (Inputs / Outputs) till 7KV

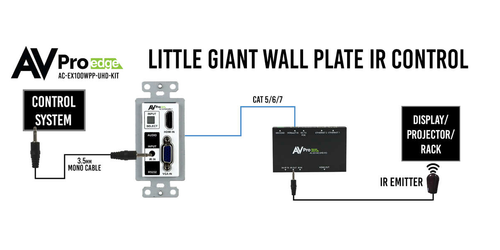

  • I-Pass Feature for control system "pass-through IR"
  • 3-20v protection circuit built in for safe IR transport
  • Compatible with HDBaseT displays, projectors, AVR's
  • Can Cascade for ultra-long distance
  • Compatible Box Types: Mud Rings, Stud Mount, Clamp Mount, Metal & Plastic Boxes, LV Boxes
  • Power Consumption: 8 Watts (16.5 when paired)
  • Power Supply: Input: AC 100-240V, 50/60Hz / Output: DC 5V 2A (mini USB)

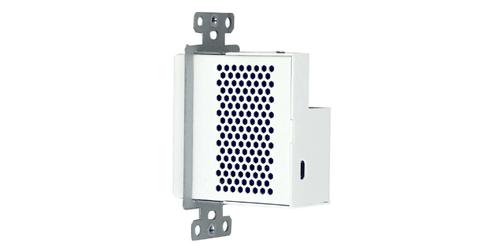

  • Dimensions (WxDxH): 2.75 x 2.55 x 1.22" (without wall decora cover)
  • Weight: 0.3lbs
  • Warranty: 10 Years
  • AAC-EX100-UHD-R2 Receiver Specs:
  • Component: HDBaseT Receiver w/ Ethernet (2-ports), IR, RS-2323 & Bi-Directional PoE
  • Max resolution: 4KX2K 30Hz or 4KX2K 60Hz YUV 4:2:0 Compliance: HDCP 2.2 and HDMI 2.0
  • Distance: 1080P up to 330', 4K up to 230'
  • Sends HDMI with embedded audio, bi-directional IR and RS-232
  • Bandwidth: 10.2 Gbps
  • LED indicator lights
  • ESD protection circuitry
  • Cascadable up to 8 times
  • Audio: All DTS-HD and Dolby-HD
  • Receiver, supplies power to wall plate
  • Dimensions: .47" H x 3.93" D x 3.15"W
  • Weight: .7lbs
  • Warranty: 10 years
