ATEN VS461

4X1 DVI and Audio Switch, HDCP Compatible - 1920 x 1200

Satisfaction Guaranteed!
Part #: VS461
Regular Price: $325.00
Instant Savings: -$65.00
Quantity: $260.00
0 out of 5 based on 0 ratings.

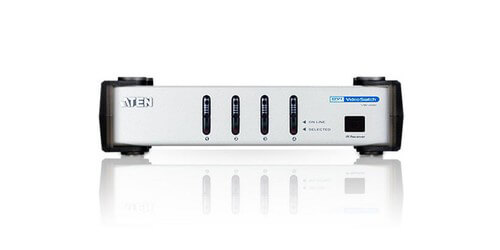

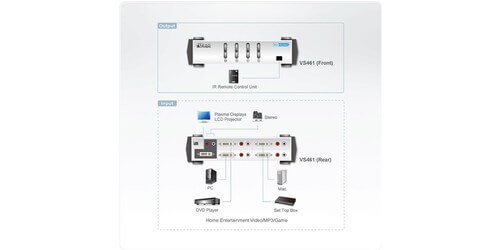

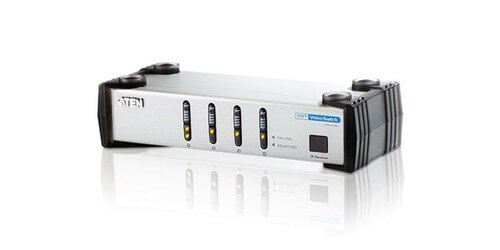

The ATEN VS461 is a 4X1 DVI and Audio Switcher that offers Single Link DVI video switching capabilities with stereo quality audio. This device works by allowing users to switch between the digital video and audio outputs of up to 4 digital devices through a single DVI display and set of speakers. Users can simply toggle between the DVI input sources via the push buttons located on the front panel of the device, or by using the included IR remote control. It can support quality video resolutions up to 1920 x 1200, while supported digital and analog video input for flat panel displays, data projectors, plasma displays, digital TV's and set top boxes, as well as traditional monitors and TV's. There is a power-on detection feature that will automatically switch the device to the next powered-on source whenever a DVI source is powered off. Additionally this switcher will support both PC and MAC operating systems, comes in a metal housing, and offers a stackable design to improve work space organization.

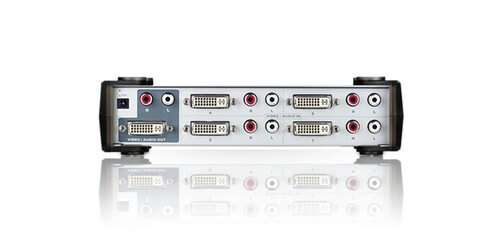

  • Inputs: 4 x DVI-I, Female
  • Outputs: 1 x DVI-I, Female
  • Support Resolution: Up to 1920 x 1200
  • Bandwidth: 6.75Gbps (2.25Gbps per lane)
  • Maximum Pixel Clock: 225MHz
  • Video Input Distance: 5.9' (max)
  • Video Output Distance: 16.4' (max)
  • Audio Inputs: 4 x Stereo red/white RCA
  • Audio Outputs: 1 x Stereo red/white RCA
  • Power Connectors: DC Jack
  • Power Consumption: 5.3V DC, 4.93W
  • Housing Material: Metal
  • Dimensions (LxWxH): 8.27 x 3.46 x 2.19"
  • Included Accessories: IR Remote Control, Power Adapter, User Manual
  • Warranty: 3 Years
