ATEN VS1508T

Advance 8-port 1x8 Cat5 VGA/Audio Distribution Unit

Satisfaction Guaranteed!
Part #: VS1508T
Regular Price: $687.50
Instant Savings: -$137.50
Quantity: $550.00
0 out of 5 based on 0 ratings.

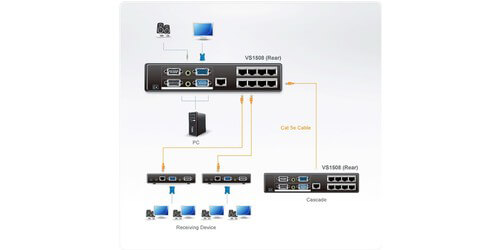

The ATEN VS1508T is a 1X8 VGA/Audio Cat5e/6 Distribution Unit with RS-232. This is a cost effective and efficient way to send high quality 1920 x 1200 resolution video and audio content to multiple displays up 500' away from a single input source. In addition the unit can be cascadable up to three levels, allowing it to support up to a virtually limitless amount of displays when combined in an installation with ATEN repeaters.  Making this device an ideal solution for any installation that requires multimedia content to be delivered to multiple destinations.

Additional Features of the VS1508T Include:

  • Cascadable up to three levels
  • Audio and serial enabled
  • Group screens on/off function
  • Provides an RS-232 channel for selection using receiving device
  • Cat5e cable extends displays up to 1,476.4' when combined with ATEN receiving devices
  • Video Inputs: VGA male
  • Video Outputs: VGA female

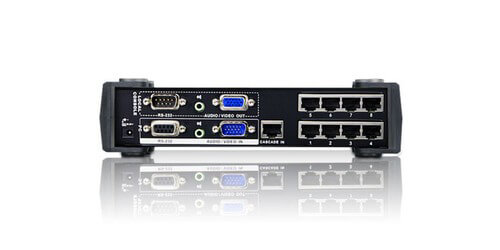

  • Connectors: Unit to Unit 8 x RJ-45, female / Cascade In: 1 x RJ-45, female
  • Supported Resolutions: 1920 x 1200, 60 Hz at 98.4' / 1600 x 1200, 60 Hz at 492.1' / 1280 x 1024, 60 Hz at 656.2'
  • Transmission Distance: 492.1'
  • RS-232 Ports: 1 x DB9 female, 1 x DB9 male
  • Cascadable up to three levels
  • Audio and serial enabled
  • Group screens on/off function
  • Power Consumption: 5.3V DC, 6.9W
  • Compatible Receivers: Suggested ATEN VB552, VE200, and VE200R
  • Dimensions (LxWxH): 8.3 x 3.5 x 2.2"
  • Weight: 1.7lbs
  • Included Accessories: 6' VGA/Audio Cable & Power Adapter
  • Warranty: 3 Years
