ATEN VS1204KIT1

1x4 A/V Cat 5 Splitter & 2 Mini Cat 5 A/V Receiver Kit

Satisfaction Guaranteed!
Part #: VS1204KIT1
Regular Price: $562.50
Instant Savings: -$112.50
Quantity: $450.00
0 out of 5 based on 0 ratings.

The ATEN VS1204KIT1 is a kit including a 4-port VGA/Audio Cat5 Distribution Amplifier and two Mini Cat 5 A/V Receivers. Its a cost-effective way to extend high-quality audio and video to four remote displays, with a superior video quality up to 1920 x 1200@60Hz. Connect this distribution amplifier to the Mini Cat 5 A/V Receivers with a Cat 5e cable to display to units that are up to 492' away.

The mini receivers are very compact and also feature hot-plugging support which allows the user to quickly add or remove either receiver from the displays without powering down any of the devices. Ideal applications for this kit include public broadcasting, displaying in lecture halls, as well as conferencing in corporate meetings.

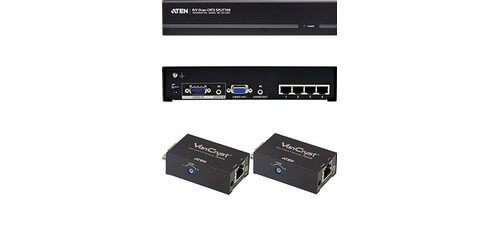

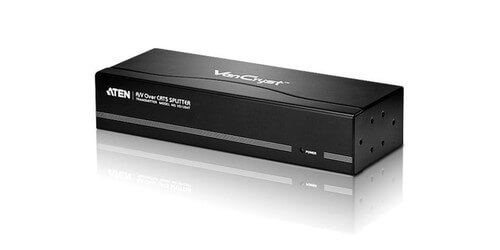

  • This kit comes with one VS1204T 4-Port Splitter and two VE022 Mini Receivers

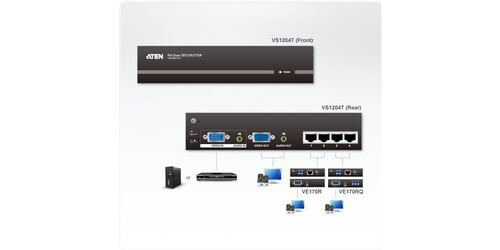

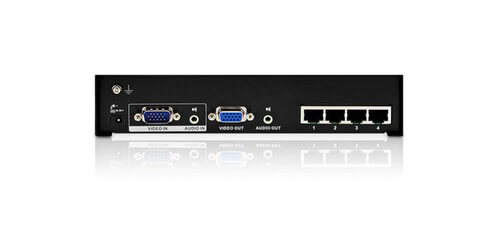

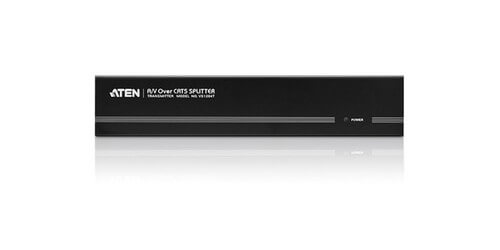

  • VS1204T 4-Port A/V over Cat 5 Splitter Specs:
  • Input: 1 x HDB-15 Male, Max. Distance 5.9'
  • Output: 1 x HDB-15 Female - Local Output, 4 x RJ-45 Female
  • Bandwidth: 225MHz
  • Resolution/Distance: Up to 1920 x 1200 at 492', 1280 x 1024@ at 984'
  • Audio Input: 1 x Mini Stereo Jack Female
  • Audio Output: 1 x Mini Stereo Jack Female
  • Power Connectors: 1 x DC Jack
  • Power Consumption: 5.3 VDC, 1.33W
  • Uses Cat 5e cable to extend displays up to 1000'
  • Audio enabled (mono)
  • Built-in 8KV/15KV ESD protection
  • Rack-mountable
  • Housing: Metal
  • Weight: 1.3 lbs.
  • Dimensions (L x W x H): 7.87" x 2.96" x 1.73"
  • Included Items: Power Adapter, Rack Mount Kit, Foot Pad Set (4 pcs), Grounding Wire, User Guide
  • Warranty: 3 years

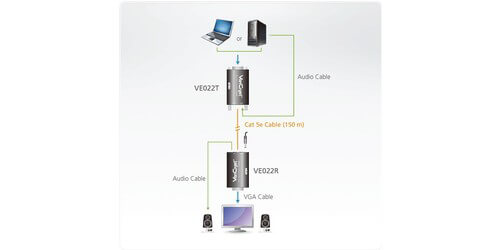

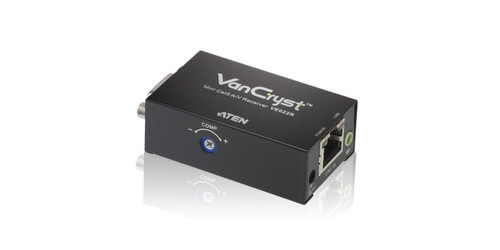

  • VE022 Mini Cat 5 A/V Receiver Specs (QTY: 2):

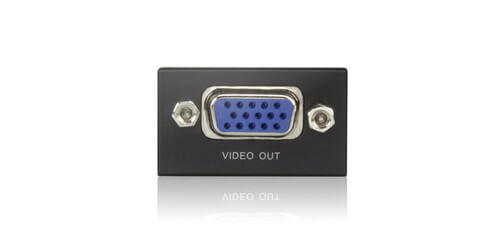

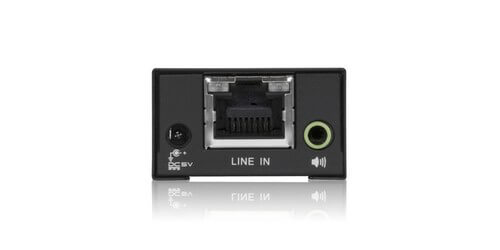

  • Input: 1 x RJ-45 Output: 1 x HDB-15 Female
  • Bandwidth: 300MHz
  • Resolutions/Distance: Up to 1920 x 1200 at 98.4', 1600 x 1200 at 328', 1280 x 1024 at 492'
  • Audio Output: 1 x Mini Stereo Jack Female
  • Power Connectors: 1 x DC Jack
  • Power Consumption: 5 VDC, 0.88W
  • Adjustable Gain Control lets you manually adjust signal strength to compensate for distance
  • Audio enabled (mono)
  • Convenient docking interface for mounting the VE022 on the display device
  • Eliminates the need for bulky VGA cables
  • Housing: Metal
  • Weight: 0.11 lb.
  • Dimensions (L x W x H): 1.39" x 3.02" x 0.81"
  • Included Items: Power Adapter, 13.7" VGA Cable, 15.7" Audio Cable, Mounting kit, User Instruction, USB to DC Power Cord
  • Warranty: 3 years
