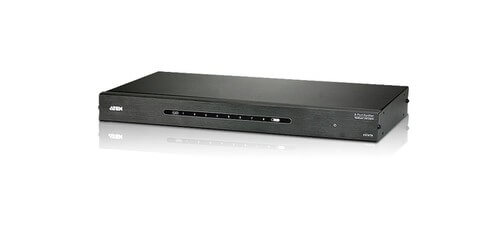

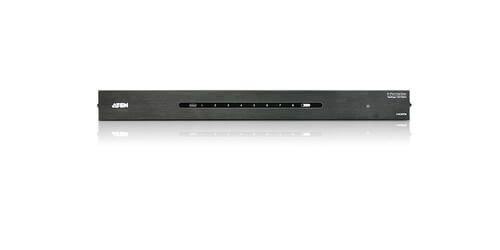

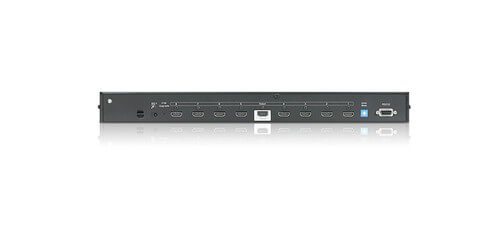

8-port 1X8 HDMI Distribution Amplifier w/ 4K60 4:2:0 Support

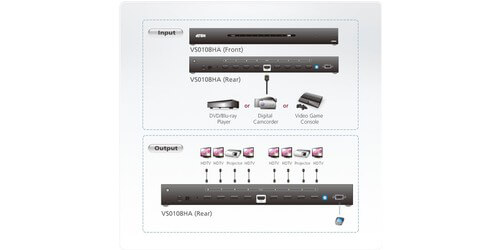

Featuring the ATEN VS0108HA 8-port HDMI Distribution Amplifier with 4K60 4:2:0 Support. This distribution amplifier is perfect for splitting one digital high definition video source to eight HDMI displays at one time. This HDCP compliant device supports all HDMI-enabled equipment, like DVD players, satellite set-top boxes and all HDMI displays. The VS0108HA offers expert EDID technology that features an EDID library with default EDID configurations, a built-in EDID mode selector, and will copy a display's EDID information to the source device. It is an effective solution for many scenarios, such as home theater applications, as well as corporate, educational and commercial settings.
- Video Input: 1 x HDMI Type A Female (Black), Max. Distance 5.9'
- Video Output: 8 x HDMI Type A Female (Black)
- Supported Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0), 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
- Max Data Rate: 10.2 Gbps (3.4 Gbps Per Lane)
- Max. Pixel Clock: 340 MHz
- Compliance: HDMI (3D, Deep Color, 4K)
- HDCP Compatible
- Max. Distance: Up to 49.2'
- Audio Input: 1 x HDMI Type A Female (Black)
- Audio Output: 8 x HDMI Type A Female (Black)
- RS-232 Connector: 1 x DB-9 Female (Black)
- EDID Mode: Default / Port 1 / Auto
- Power Connectors: 1 x DC Jack
- Power Consumption: 5 VDC, 14.84W
- Included Items: 8-Port HDMI Splitter, Power Adapter, Mounting Kit, User Instructions
- Housing: Metal
- Weight: 3.83 lbs
- Dimensions (LxWxH): 17.21" x 6.21" x 1.73"
- Warranty: 3 years
