4K DisplayPort HDBaseT-Lite Range Extender Tx/Rx Kit - 230

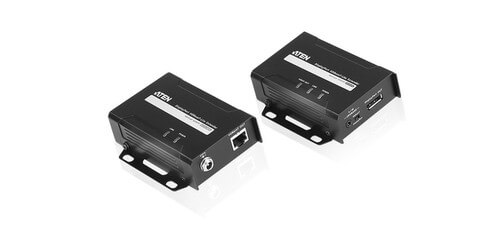

Introducing the VE901 4K 1.2 DisplayPort HDBaseT-Lite Range Extender Transmitter and Receiver Kit with an extending range of up to 230' for 4K DisplayPort imagaing. This extender kit includes one VE901T local transmitter unit and one VE901R remote receiver unit. To connect these metal encased units together the user simply attaches them via a single Cat 6 or 6a cable (not included) up to 230 feet in length.
These devices are lightweight and provide a slip-resistant DC Jack lock mechanism. They are easy to mount in a variety of locations and scenarios, giving the user peace of mind thanks to its reliability. With all this technology from both ATEN and HDBaseT, this ATEN VE901 Range Extender Kit is an ideal solution in professional A/V settings that have a need for interface protection (e.g. military and medical installations). This kit comes backed from ATEN with a 3 year warranty.
- This Kit Comes with a VE901T DisplayPort Transmitter and one VE901R DisplayPort Receiver
- Transmitter Video Input: 1 x DisplayPort, Max. Distance 5.9'
- Receiver Video Output: 1 x DisplayPort
- Resolutions: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
- Distance: Up to 4K@115' (Cat 5e/6) / 130' (Cat 6a), 1080p@195' (Cat 5e/6) / 330' (Cat 6a)
- Data Rate: 10.2Gbps (3.4Gbps per lane)
- Pixel Clock: 340 MHz
- Compliance: DisplayPort (Deep Color, 4K), HDCP Compatible
- Tx/Rx Audio Input/Output: 1 x DisplayPort Female (Black)
- Tx/Rx Power Connectors: 1 x DC Jack (Black) with locking
- Tx Power Consumption: DC 5V, 3.13W
- Rx Power Consumption: DC 5V, 7.95W
- Power Output: 3.3V / 500mA for powering auxiliary devices
- Tx Weight: 0.53 lb.
- Rx Weight: 0.59 lb.
- Dimensions (L x W x H): 3.96 x 3.43 x 1.18"
- Included Accessories: 2x Power Adapters, User Instructions
- Warranty: 3 years
